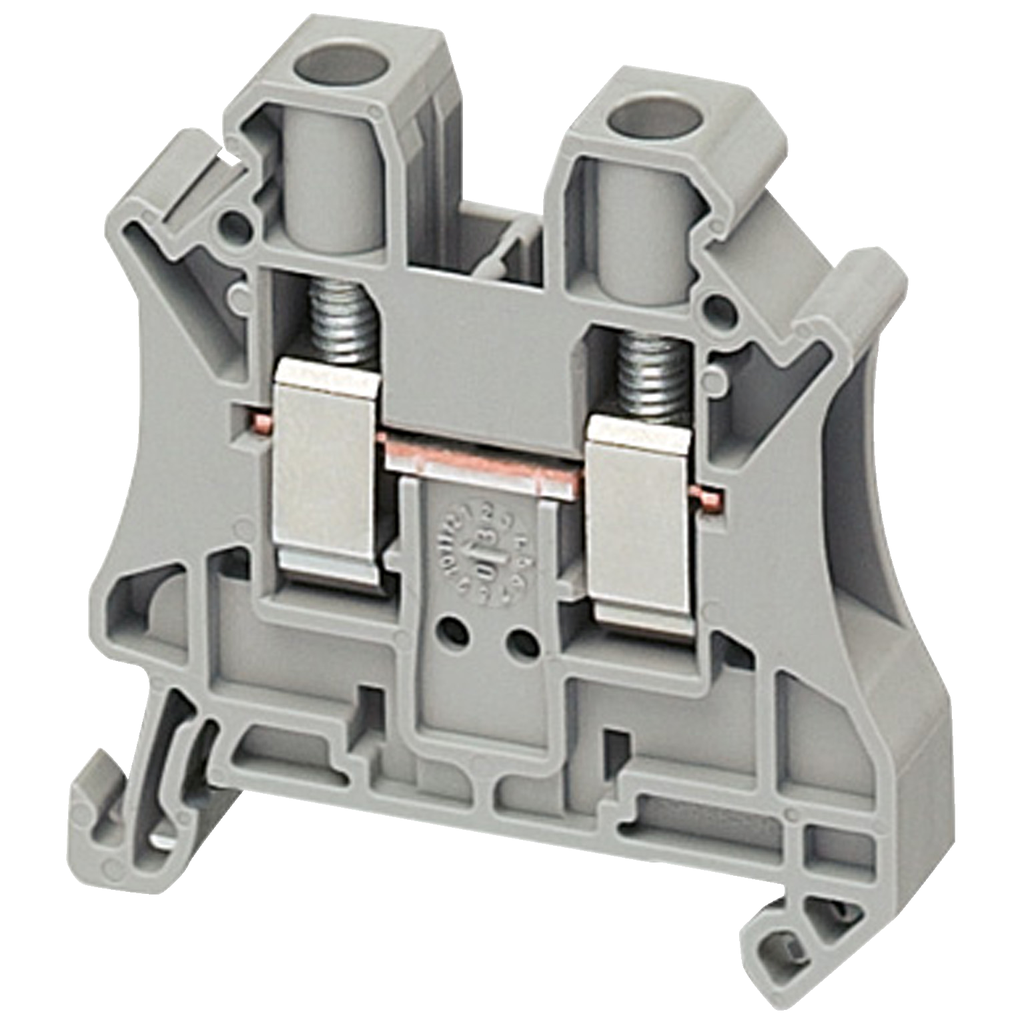

Schneider Electric NSYTRV62 Square D 6 mm 2-Point Gray Terminal Block

Product Description

The Schneider Electric NSYTRV62 is a terminal block designed for Linergy. It is a passthrough terminal block with a nominal cross-section of six millimeters. This terminal block operates at a voltage of up to 1000 volts, ensuring compliance with CSA and IEC standards for safe electrical connections.

• Works with wire sizes from twenty-four to eight AWG.
• Supports a maximum rated current of forty-one amps.
• Compatible with various enclosures including Prisma and TeSys models.

Product Highlights

This product is suitable for various applications, including connection accessories and terminal blocks, with an ambient temperature range of minus forty to one hundred thirty degrees Celsius.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: NSYTRV62
• Voltage: 1000 Volt
• Amperage: 41 Amp
• Material: Chromium-nickel Steel, Copper Alloy, Polyamide
• Mounting Type: Clip-On
• Dimensions: 1.87 in Length x 0.32 in Width x 1.87 in Height
• Weight: 0.49 oz
• Country of Origin: Germany
• Manufactured in the USA: No
