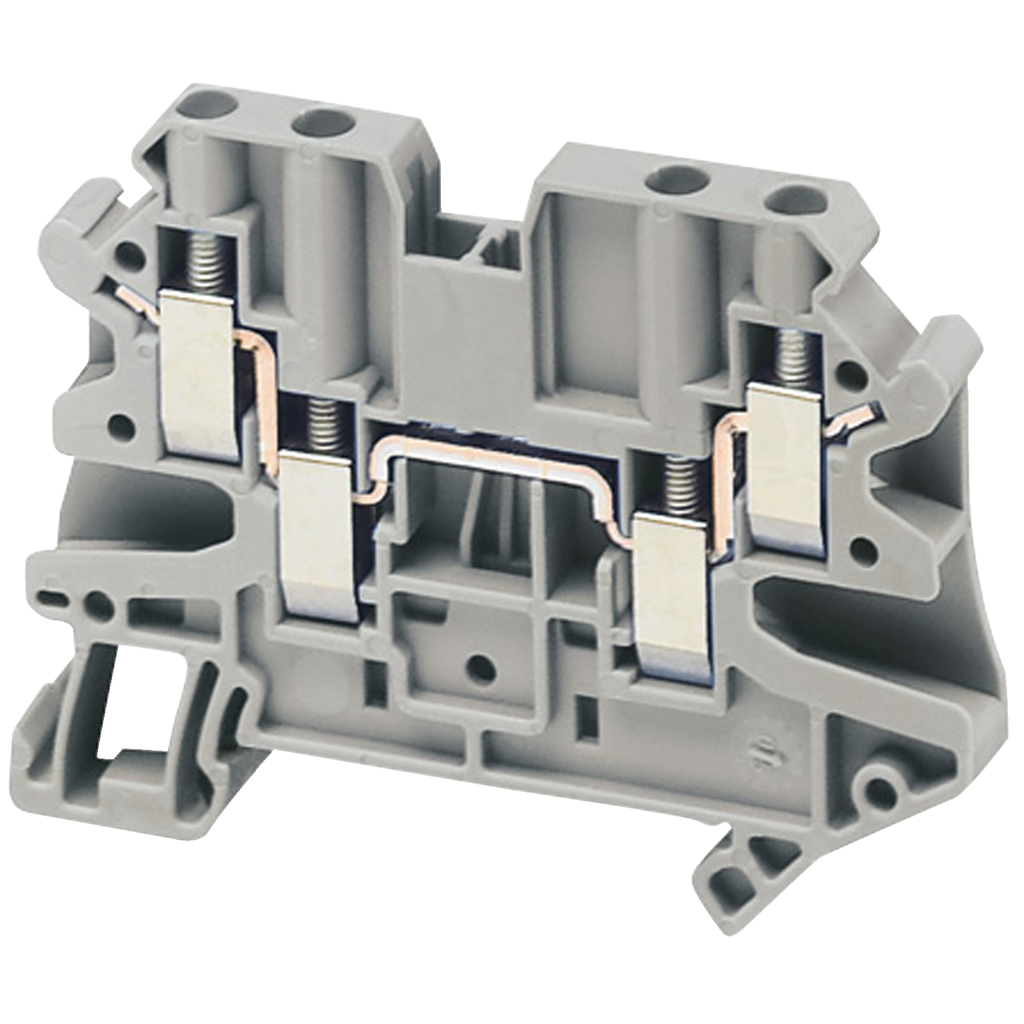

Schneider Electric NSYTRV44 Terminal Block Linerg 150/500 Volt 50 Pack

Product Description

The Schneider Electric NSYTRV44 is a terminal block designed for use with Linergy systems. It features a passthrough design with a nominal cross section of four millimeters. This block operates at a rated voltage of one hundred fifty volts in compliance with cURus standards and five hundred volts according to EN/IEC 60947-7-1. The rated current is thirty-two amps per EN/IEC 60947-7-1, thirty amps per CSA/cURus, and twenty-nine amps per ATEX.

• Compatible with various enclosures including Prisma and TeSys.
• Mounts through clip-on installation and allows connection via one-by-one screw terminals.
• Sold in packs of fifty units.

Product Highlights

This terminal block supports a temperature range from negative forty to one hundred thirty degrees Celsius and meets multiple certifications including ATEX and CSA. It is designed for quick connection and disconnection using a screwdriver.

Product Information

Standard Information

• Brand: Schneider Electric
• Catalog Number: NSYTRV44

Technical Specifications

• Dimensions: Length sixty-five point four mm, Width six point two mm, Height forty-seven point five mm
• Weight: seventeen grams
• Voltage: 150 volts
• Amperage: 32 amps
• Material: Chromium-nickel steel, copper alloy, polyamide
• Connection Type: Two screw terminals downstream, two screw terminals upstream
• Warranty: Eighteen months
• Country of Origin: Germany
