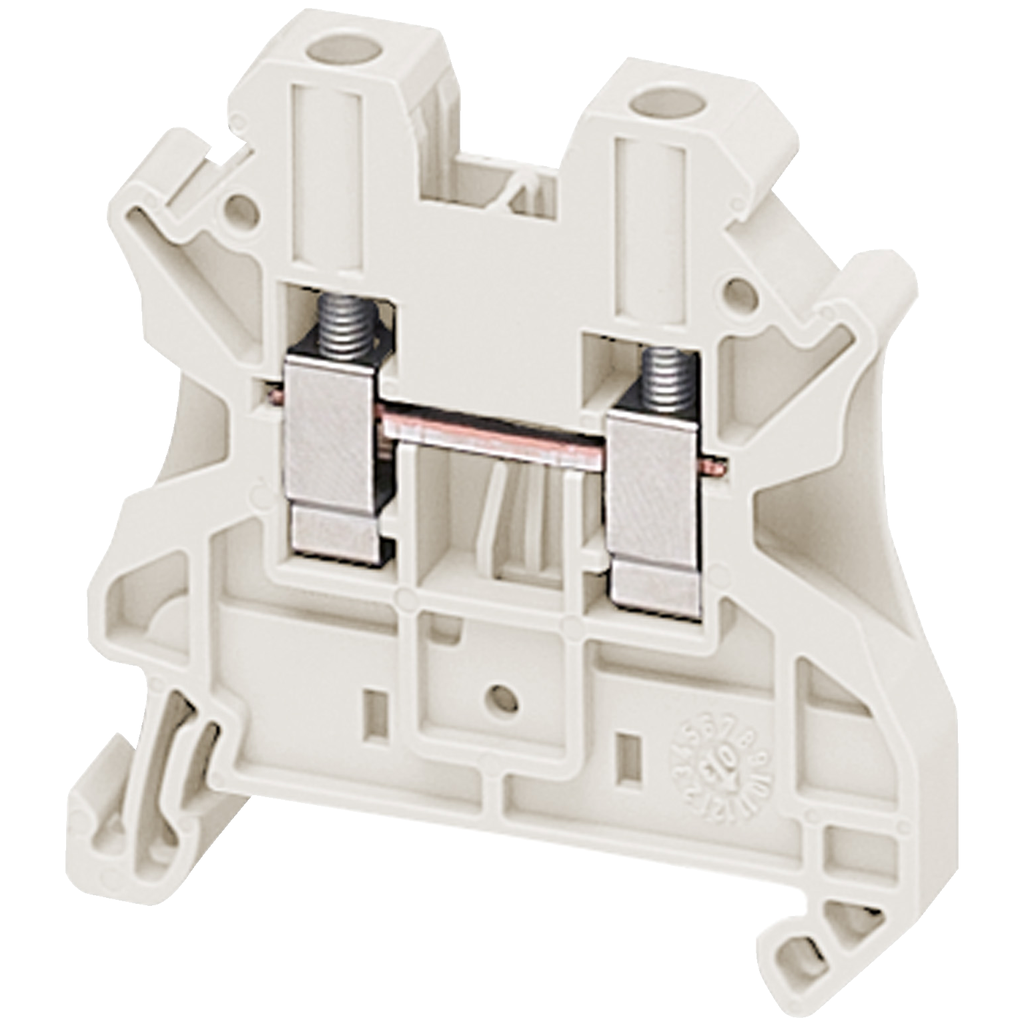

Schneider Electric NSYTRV42WH 4 mm 2-Point White 26 to 10 AWG Solid/Stranded Copper Screw Terminal Block

Product Description

The Schneider Electric NSYTRV42WH is a reliable terminal block designed for various electrical applications. This terminal block features two terminal points and can accommodate wire sizes ranging from 26 AWG to 10 AWG. It offers screw terminal connections and is rated for 30 A at 600 volts. The mounting process is efficient, utilizing a screwdriver for installation on a 35mm DIN rail.

• Accepts wires from 26 AWG to 10 AWG.
• Rated for 30 A at 600 volts.
• Utilizes screw terminal connections for secure wiring.

Product Highlights

Reliable connection for use in power distribution. Utilizes UL recognized components and meets IEC standards, ensuring safety and conformity.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• MPN: NSYTRV42WH
• Size: Length 47.7 mm, Width 6.2 mm, Height 47.5 mm
• Weight: 0.33 oz
• Voltage: 1000 Volt
• Amperage: 32 Amp
• Material: Chromium-nickel Steel, Copper Alloy, Polyamide
• Mounting Type: Clip-On
• Number of Terminations: 2
