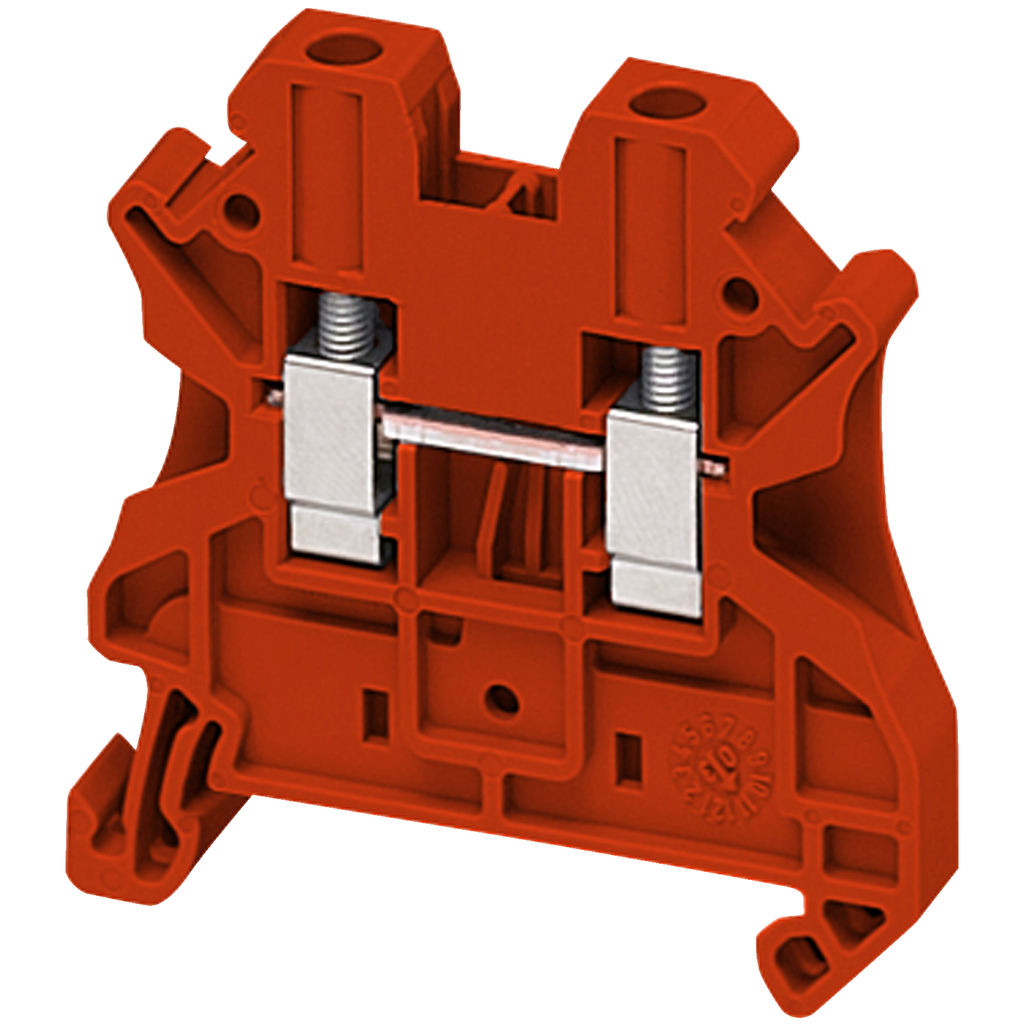

Schneider Electric NSYTRV42RD Square D 4 mm 2-Point Red 26 to 10 AWG Solid/Stranded Copper Screw Terminal Block

Product Description

Schneider Electric NSYTRV42RD is a terminal block designed for power distribution applications. This square D terminal block is red and accommodates solid and stranded copper wires ranging from twenty-six to ten AWG. It features two terminal points with a screw termination system.

• Rated for 30 amperes at 600 volts
• Suitable for DIN rail mounting (35mm)
• UL recognized and CSA certified

Product Highlights

This terminal block allows for efficient connections in electrical systems. It is built to handle different wire sizes and ensures a strong and reliable connection.

Product Information

Standard Information

• Catalog Number: NSYTRV42RD
• Brand: Schneider Electric

Technical Specifications

• Terminal Points: 2
• Wire Size Range: 26 AWG to 10 AWG
• Height: 1.87 inches
• Width: 0.24 inches
• Depth: 1.88 inches
• Weight: 0.33 oz (9.4 grams)
• Voltage Rating: 1000 volts
• Amperage Rating: 32 amperes
• Material: Polyamide, Copper alloy, Chromium-nickel steel
• Country of Origin: China
