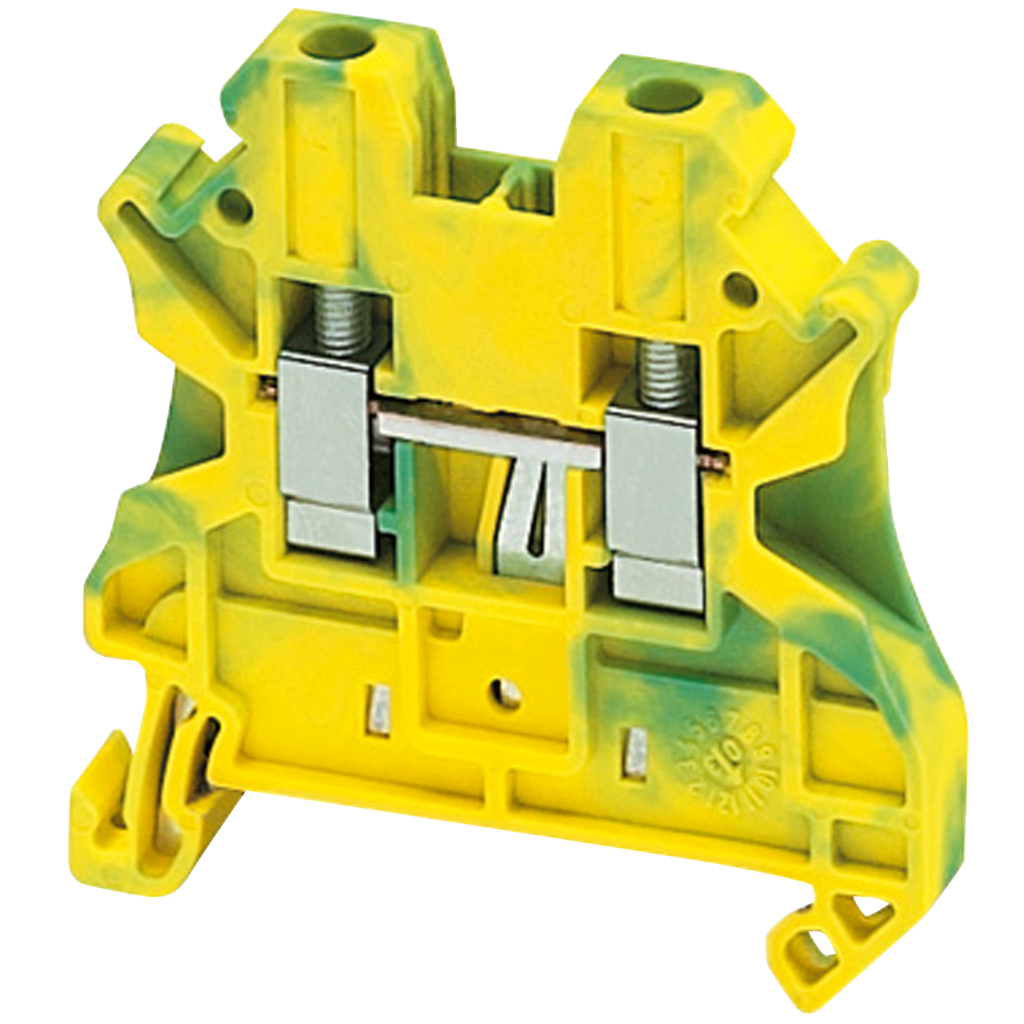

Schneider Electric NSYTRV42PE Square D 4 mm 2-Point Green/Yellow 26 to 10 AWG Solid/Stranded Copper Screw Terminal Block

Product Description

Schneider Electric's NSYTRV42PE is a terminal block designed for Linergy applications. This block has a nominal cross-section of four millimeters and features a green-yellow surface treatment for easy identification. It utilizes a clip-on mounting method with screw terminals for connection and disconnection using a screwdriver.

This terminal block is compatible with various enclosures such as Prisma G, Prisma P, and TeSys. It is packaged in lots of fifty, making it convenient for bulk applications. The operating temperature range is from negative forty degrees to one hundred thirty degrees Celsius, adhering to IEC 60216-1 and VDE 0304-T21 standards.

The NSYTRV42PE is certified by multiple standards including ATEX, CSA, and IEC-Ex, ensuring reliability across various applications. It complies with Green Premium standards, confirming its environmental compliance.

• Nominal cross-section: 4 mm
• Temperature range: -40 to 130 degrees Celsius
• Compatible with Prisma and TeSys enclosures

Product Highlights

Ideal for a range of terminal block applications in power distribution. Compatible with a variety of enclosures and certified for multiple standards.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: NSYTRV42PE
• Color: Green-yellow
• Material: Polyamide
• Width: 6.2 mm
• Height: 47.5 mm
• Length: 47.7 mm
• Weight: 0.47 oz
• Wire Size: 0.01 in (4 mm)
• Connection: 1 x screw terminal upstream, 1 x screw terminal downstream
• Warranty Length: 18 months
• Country of Origin: Germany
