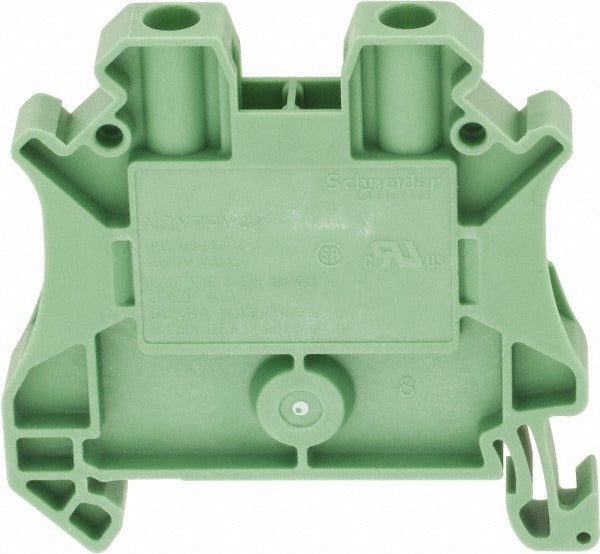

Schneider Electric NSYTRV42GN Terminal Block 1000V 32A

Product Description

The SCHNEIDER ELECTRIC NSYTRV42GN is a single-pole, passthrough terminal block rated for 1,000 volts and 32 amps, designed for DIN rail installation in industrial control panels and electrical enclosures. Constructed from polyamide, the block resists heat and maintains structural integrity across a wide operating temperature range of -40 to 266 degrees F. It accepts wire sizes from 26 AWG down to 10 AWG, covering a broad range of conductor gauges used in control wiring applications. Licensed electricians and panel builders install this block during new panel builds or service upgrades where organized, reliable wire termination is required.

This terminal block is suited for industrial and commercial electrical panel assemblies where DIN rail mounting is the standard. The green polyamide housing is commonly used in grounding or functional identification schemes within modular terminal strip layouts. It is sold individually and fits standard 35 mm DIN rail configurations found in motor control centers, PLC enclosures, building automation panels, and similar control infrastructure. Its two-contact passthrough design supports straight-through conductor routing without splicing.

Key Features

• 1,000-volt rating supports high-voltage control panel applications
• 32-amp continuous current capacity for moderate-load circuits
• Accepts 26 AWG to 10 AWG wire (0.14 sq mm to 6 sq mm)
• Polyamide construction provides chemical resistance and dimensional stability
• Green color coding for panel organization and grounding identification
• DIN rail mount design integrates with standard modular terminal strip assemblies
• Meets ATEX, CSA, cURus, IEC 60216-1, IECEx, RoHS, VDE, DNV, GL, and LR certifications

Compatibility

Designed for use on standard DIN rail installations in industrial and commercial electrical enclosures requiring single-pole passthrough terminal blocks rated at 1,000 volts and 32 amps.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. De-energize the panel completely and verify zero voltage before mounting or terminating wiring to this block. Use an appropriately rated screwdriver for terminal screws and confirm conductor gauge falls within the 26 AWG to 10 AWG supported range before insertion. Do not exceed the rated voltage or amperage for the circuit being terminated.
