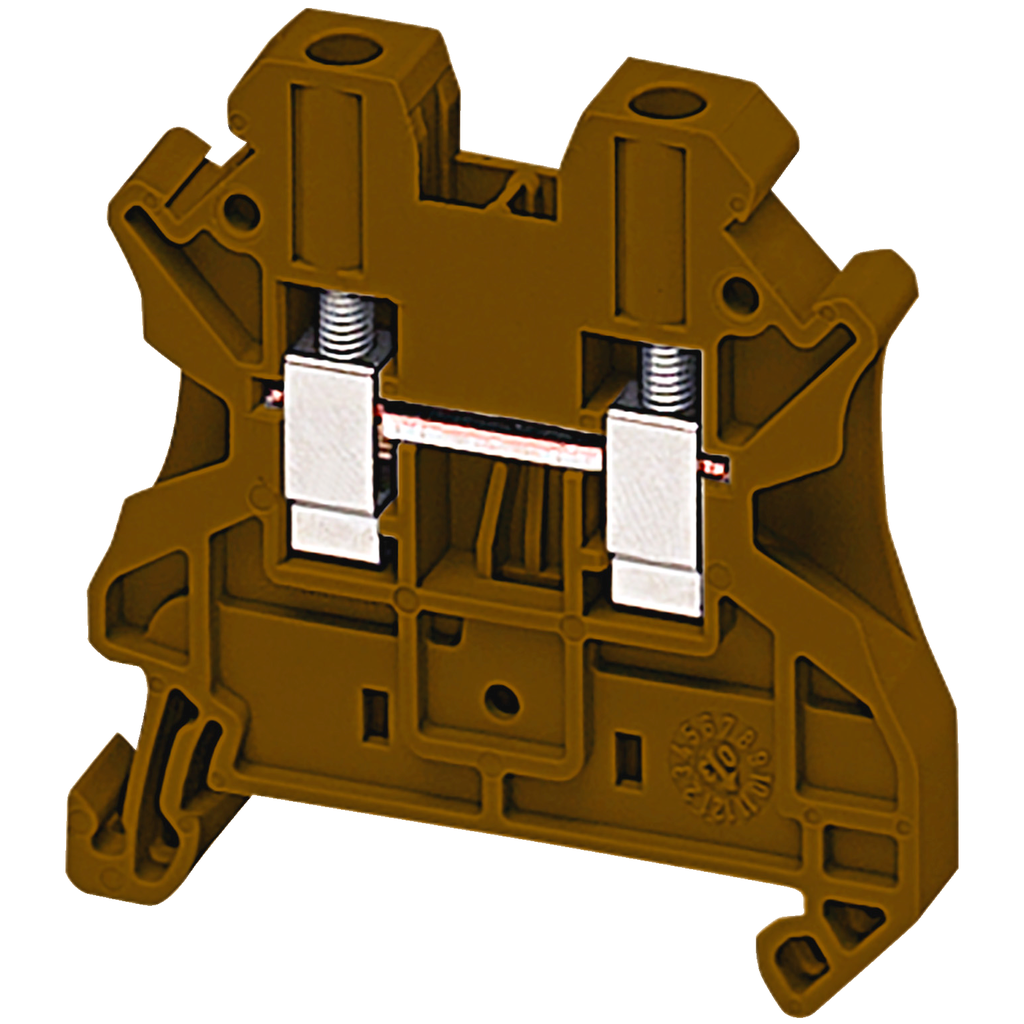

Schneider Electric NSYTRV42BR SQD NSYTRV42BR SCREW TERMINAL, FEED 1000 Volt (Each) REPLACEMENT MPN

Product Description

The Schneider Electric NSYTRV42BR is a screw terminal designed for efficient electrical connections. It features a feed-through design suitable for various applications and supports up to 32 amps at a maximum voltage of 1000 volts.

• Two connection points for versatile wiring setups
• Constructed from durable polyamide material
• Suitable for both commercial and industrial electrical systems

Product Highlights

This screw terminal is a reliable choice for terminal block applications. It streamlines the connection process while adhering to safety standards.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: Germany

Technical Specifications

• Catalog Number: NSYTRV42BR
• Voltage Rating: 1000 Volt
• Amperage Rating: 32 Amp
• Material: Polyamide
• Width: 6.2 mm
• Height: 47.5 mm
• Length: 47.7 mm
• Weight: 0.33 oz
• Strip Length: 9 mm
• Mounting Type: Clip-On
• Certifications: ATEX, CSA, CURus, DNV, EAC, GL, IEC-Ex, LR, VDE
