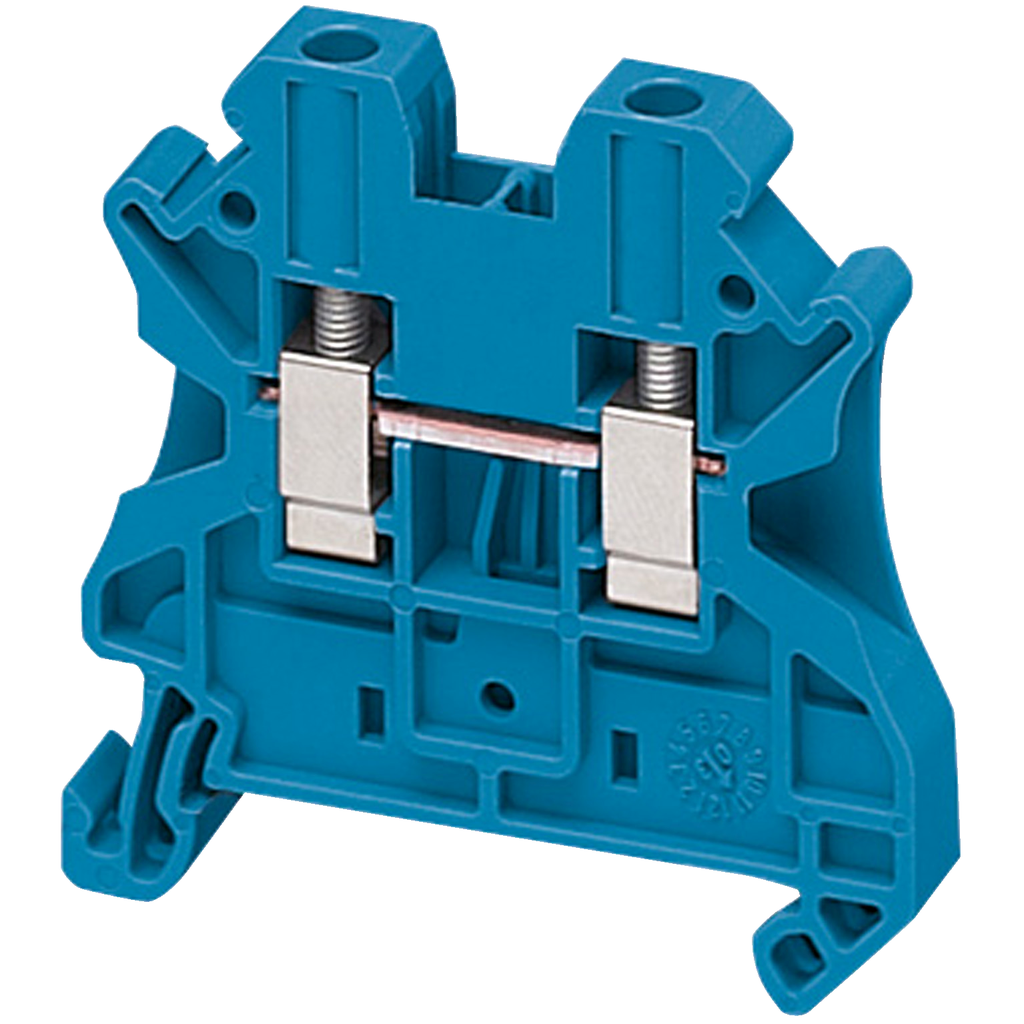

Schneider Electric NSYTRV42BL 4 mm 2-Point Blue 26 to 10 AWG Solid/Stranded Copper Screw Terminal Block

Product Description

The Schneider Electric NSYTRV42BL is a terminal block designed for Linergy applications. This model features a nominal cross-section of four millimeters and supports various wire sizes ranging from zero point fourteen to six square millimeters with solid and stranded copper connections. The block operates effectively at a rated current of thirty-two Amperes and a maximum operational voltage of one thousand Volts per the EN/IEC 60947-7-1 standard.

• Compatible with various Spacial enclosures including Prisma G and Prisma P
• Designed for clip-on mounting and screwdriver connection
• Operates in temperatures from minus forty to one hundred thirty degrees Celsius

Product Highlights

This product features multi-standard certifications, making it suitable for various installations. It is RoHS and REACH compliant, ensuring it meets strict environmental standards.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Schneider Electric

Technical Specifications

• Catalog Number: NSYTRV42BL
• Max Voltage: 1000 Volt
• Rated Current: 32 Amp
• Material: Polyamide, Chromium-nickel Steel, Copper Alloy
• Mounting Type: Clip-On
• Country of Origin: China
• Warranty Length: 18 months
