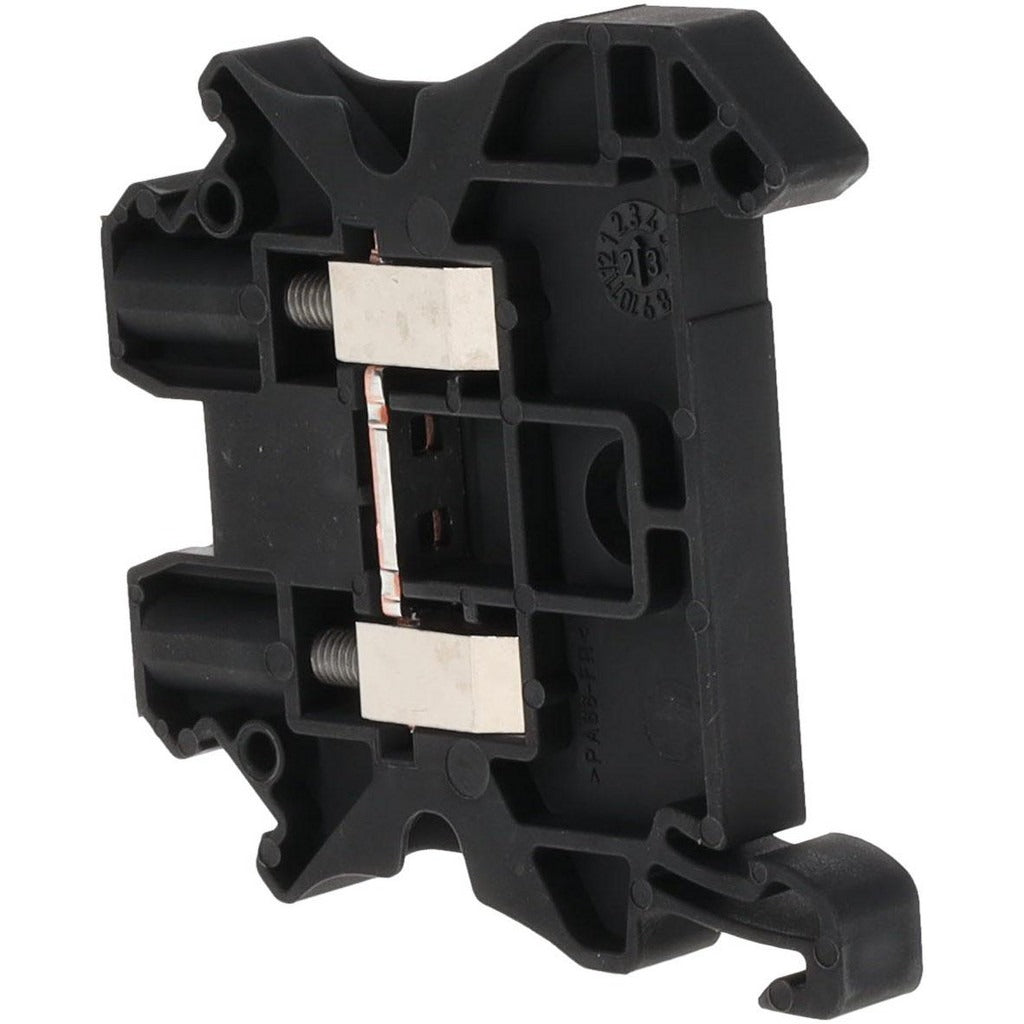

Schneider Electric NSYTRV42BK Terminal Block 1000V 32A

Product Description

The SCHNEIDER ELECTRIC NSYTRV42BK is a single-pole passthrough terminal block rated for 1,000 volts and 32 amps, built for DIN rail installation in industrial control panels and electrical enclosures. The block is constructed from black polyamide, a glass-reinforced thermoplastic that resists heat, chemicals, and mechanical stress. It accepts wire sizes from 26 AWG down to 10 AWG, covering a broad range of control and power wiring applications. The operating temperature range spans -40 degrees F to 266 degrees F, making it suitable for demanding environments. Electricians and panel builders install this block when routing conductors through a terminal point without bridging or switching the circuit.

This terminal block is used in industrial control panels, machine wiring, and electrical distribution enclosures where reliable passthrough connections are required. It mounts to standard DIN rail, allowing fast assembly alongside other DIN-compatible components. The 47.5 mm height fits within standard enclosure layouts. Two contact points secure the conductor on entry and exit. It is appropriate for both light-gauge control wiring and heavier 10 AWG power conductors, making it versatile across residential, commercial, and industrial panel builds.

Key Features

• 1,000-volt rating supports high-voltage panel wiring applications
• 32-amp continuous current capacity for both control and power circuits
• Accepts wire range from 26 AWG to 10 AWG (0.14 sq mm to 6 sq mm)
• Black polyamide body resists heat, chemicals, and mechanical wear
• DIN rail mounting enables quick, tool-efficient panel assembly
• Wide temperature range (-40 degrees F to 266 degrees F) for harsh environments
• Meets ATEX, CSA, cURus, IEC 60216-1, IECEx, RoHS, VDE, DNV, GL, and LR standards

Compatibility

Designed as an OEM-style passthrough terminal block for standard DIN rail systems in industrial control panels and electrical enclosures requiring single-pole, high-voltage terminal connections.

Installation Notes

Installation should be performed by a licensed electrician following applicable NEC requirements for panel wiring and terminal block assemblies. De-energize the panel and verify zero voltage before installing or removing terminal blocks. Snap the block firmly onto a grounded DIN rail and confirm seating before terminating conductors. Do not exceed the rated wire size or amperage for the connection point.
