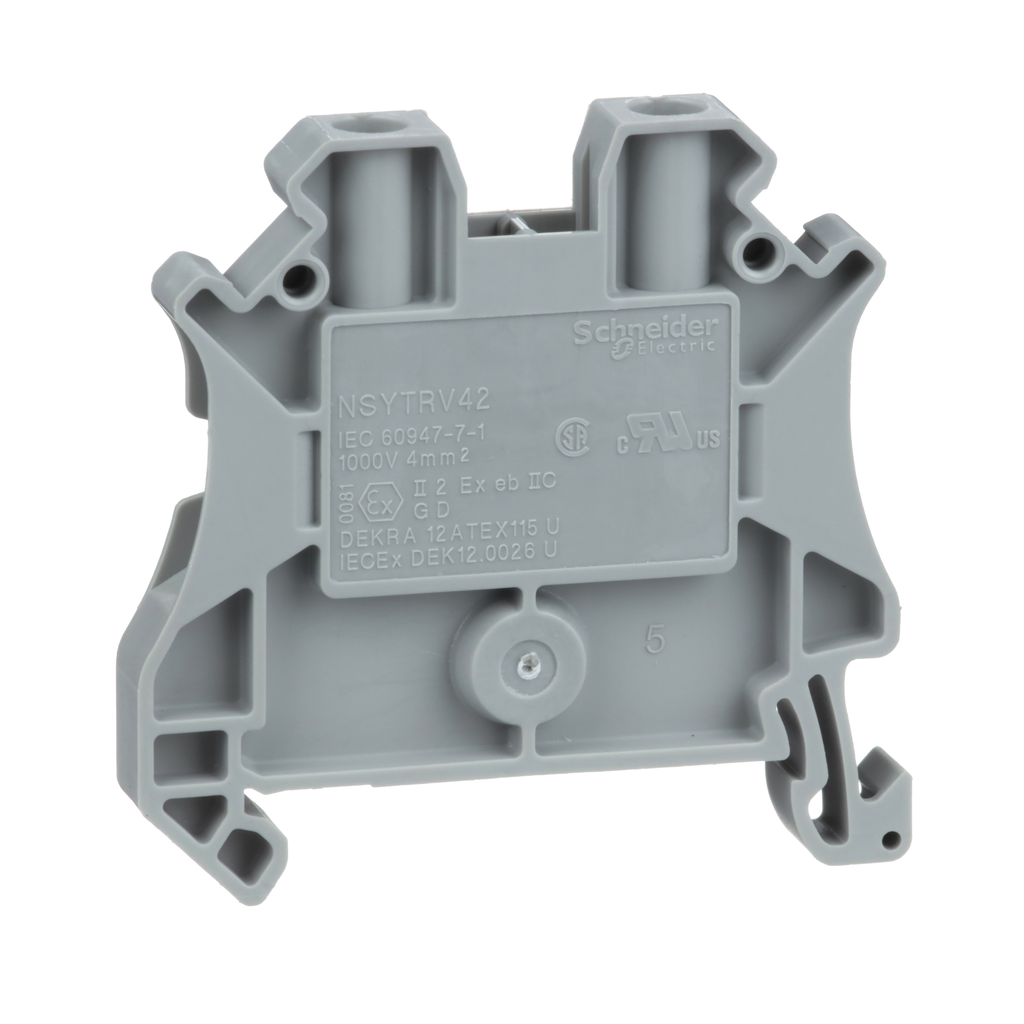

Schneider Electric NSYTRV42 Square D 4 mm 2-Point Gray 26 to 10 AWG Solid/Stranded Copper Screw Terminal Block

Product Description

Schneider Electric NSYTRV42 is a terminal block suitable for various applications. This product is commonly used in industrial control, HVAC, and machine tool settings. The terminal block features three connection technologies: screw, spring clamp, and push-in. This design allows fast and easy installation, making it ideal for electricians and technicians.

• Compatible with two-wire connections
• Rated for 32 Amps and 1000 Volts
• Designed for efficient installation in tight spaces

Product Highlights

The NSYTRV42 terminal block supports reliable connections while meeting international standards. It is designed for use in environments ranging from -40 to 130 degrees Celsius. This ensures it can perform well in various conditions.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: NSYTRV42
• Material: Polyamide, Copper Alloy, Chromium-Nickel Steel
• Width: 6.2 mm
• Height: 47.5 mm
• Length: 47.7 mm
• Weight: 0.33 oz
• Voltage: 1000 Volts
• Amperage: 32 Amps
• Country of Origin: China
• Warranty Length: 18 months
