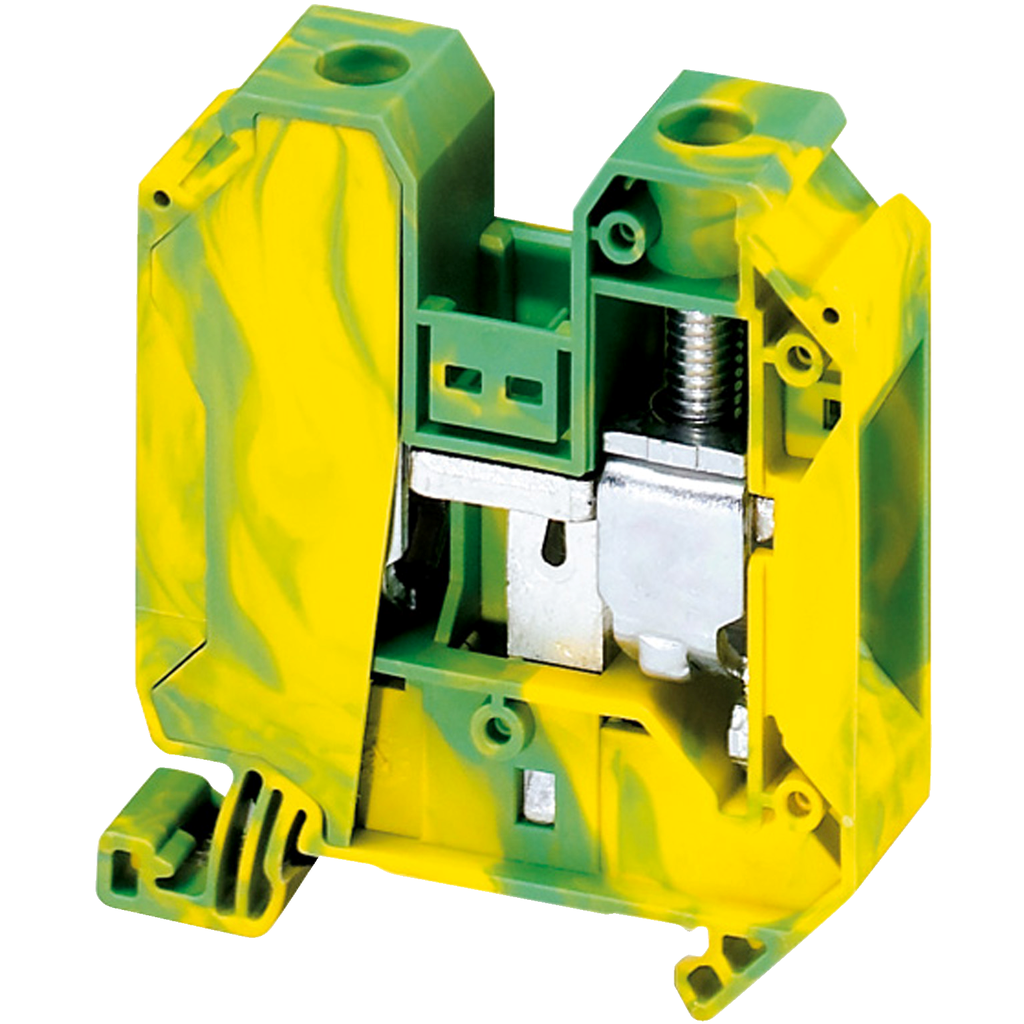

Schneider Electric NSYTRV352PE Square D NSYTRV352PE 35 mm 2-Point Green/Yellow 14 AWG Solid/Stranded Copper Screw Terminal Block

Product Description

Schneider Electric NSYTRV352PE is a terminal block designed for the Linergy series. It features a nominal cross section of thirty-five millimeters and has a green-yellow surface treatment. The mount type is clip-on, allowing for easy installation. Connection and disconnection is possible using a screwdriver. This terminal block is compatible with various spacial enclosures, including Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, and TeSys. The product is sold in lots of fifty units. It operates in ambient temperatures ranging from negative forty to one hundred thirty degrees Celsius, adhering to IEC 60216-1 and VDE 0304-T21 standards. The unit is certified under multiple standards, including ATEX, CSA, and cURus. It also complies with Green Premium (RoHS/REACH).

• Sold in packs of fifty units.
• Compatible with numerous spacial enclosures.
• Operates in a wide temperature range.

Product Highlights

This terminal block is ideal for protecting earth connections and suitable for various wiring applications.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: NSYTRV352PE

Technical Specifications

• Width: sixteen mm
• Height: sixty point two mm
• Length: sixty-five point seven mm
• Material: Polyamide
• Amperage: one hundred twenty-five Amp
• Connection Type: one screw terminal upstream, one screw terminal downstream
• Countries of Origin: Turkey
• Warranty Length: eighteen months
