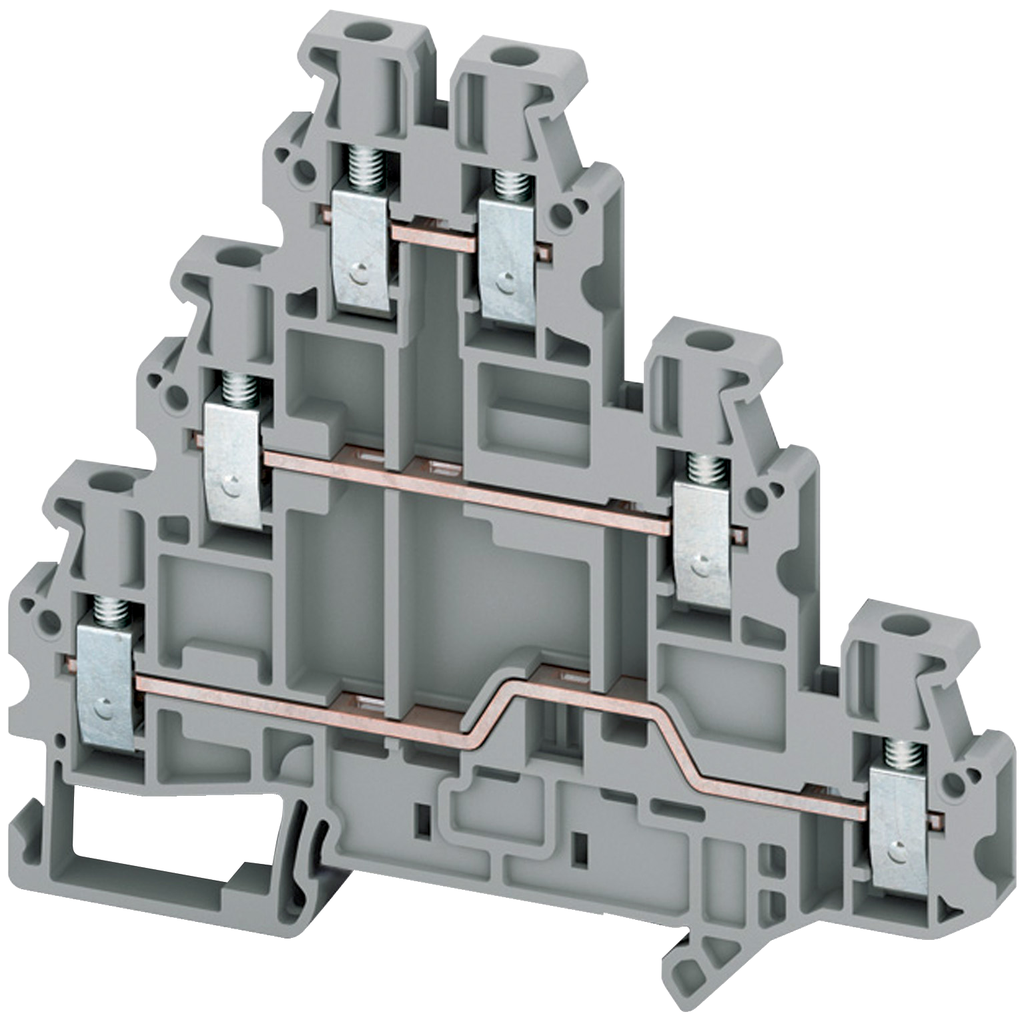

Schneider Electric NSYTRV26T Square D 2 mm 6-Point Gray 26 to 10 AWG Solid/Stranded Copper Screw Terminal Block

Product Description

Schneider Electric NSYTRV26T is a terminal block designed for various applications. This product features a nominal cross-section of 2.5 millimeters and is suitable for solid and stranded copper wires from twenty-six to ten American Wire Gauge. The operational voltage is five hundred volts, while the current rating is twenty amps. The unit mounts easily with clip-on installation and connects via three-level, one by one screw terminals. It is straightforward to connect and disconnect using a screwdriver.

• Sold in sets of fifty.
• Compatible with several types of enclosures, including Prisma G and Spacial.
• Operates in temperatures ranging from negative forty to one hundred thirty degrees Celsius.

Product Highlights

This terminal block complies with multiple standards including CSA, cURus, and EAC. It also meets Green Premium requirements for environmental standards, making it a reliable choice for various electrical applications.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Schneider Electric

Technical Specifications

• Catalog Number: NSYTRV26T
• Voltage: 500 Volt
• Amperage: 20 Amp
• Material: Polyamide, Copper Alloy, Chromium-Nickel Steel
• Color: Gray
• Length: 90 mm
• Width: 5.2 mm
• Height: 77.5 mm
• Weight: 0.89 oz
• Country of Origin: Poland
• Mounting Type: Clip-On
• Wire Size: 2.5 mm
• Warranty Length: 18 months
