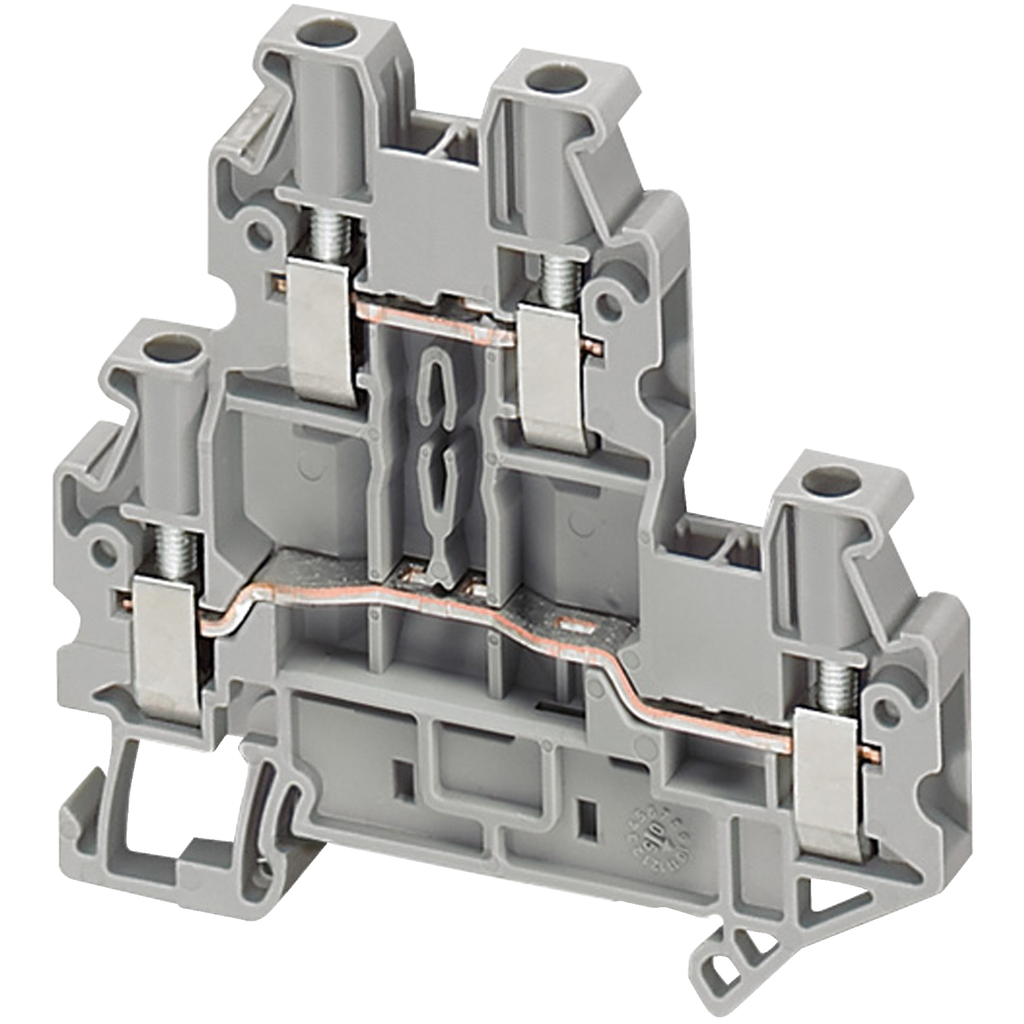

Schneider Electric NSYTRV24D Square D 2 mm 4-Point Gray 26 to 12 AWG Solid/Stranded Copper Screw Terminal Block

Product Description

Schneider Electric presents the NSYTRV24D, a terminal block designed for Linergy applications. This passthrough terminal block features a nominal cross-section of 2.5 mm. The operational voltage rating is six hundred volts for CSA/cURus, five hundred volts for EN/IEC 60947-7-1, and three hundred fifty-two volts according to ATEX Exe II Ex II 2 GD. The rated current is twenty-four amps, adhering to EN/IEC standards, and twenty amps for CSA/cURus as well as ATEX certifications.

The terminal block has a grey surface treatment and can be mounted easily with clip-on connections. It allows for simple connection and disconnection using a screwdriver. This model is compatible with various spatial enclosures including Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, and TeSys. It is sold in packs of fifty units, suitable for a temperature range from negative forty to one hundred thirty degrees Celsius.

Product Highlights

• Compatible with multiple enclosures
• Easy clip-on mounting
• Wide temperature operation range

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: NSYTRV24D

Technical Specifications

• Catalog Number: NSYTRV24D
• Size: 2.56 in
• Type: Passthrough terminal block
• Color: Gray
• Width: 5.2 mm
• Height: 65 mm
• Length: 69.9 mm
• Weight: 0.54 oz
• Voltage: 352 Volt
• Amperage: 24 Amp
• Material: Polyamide, Copper Alloy, Chromium-nickel Steel
• Mounting Type: Clip-On
• Country of Origin: Germany
• Warranty Length: 18 months
