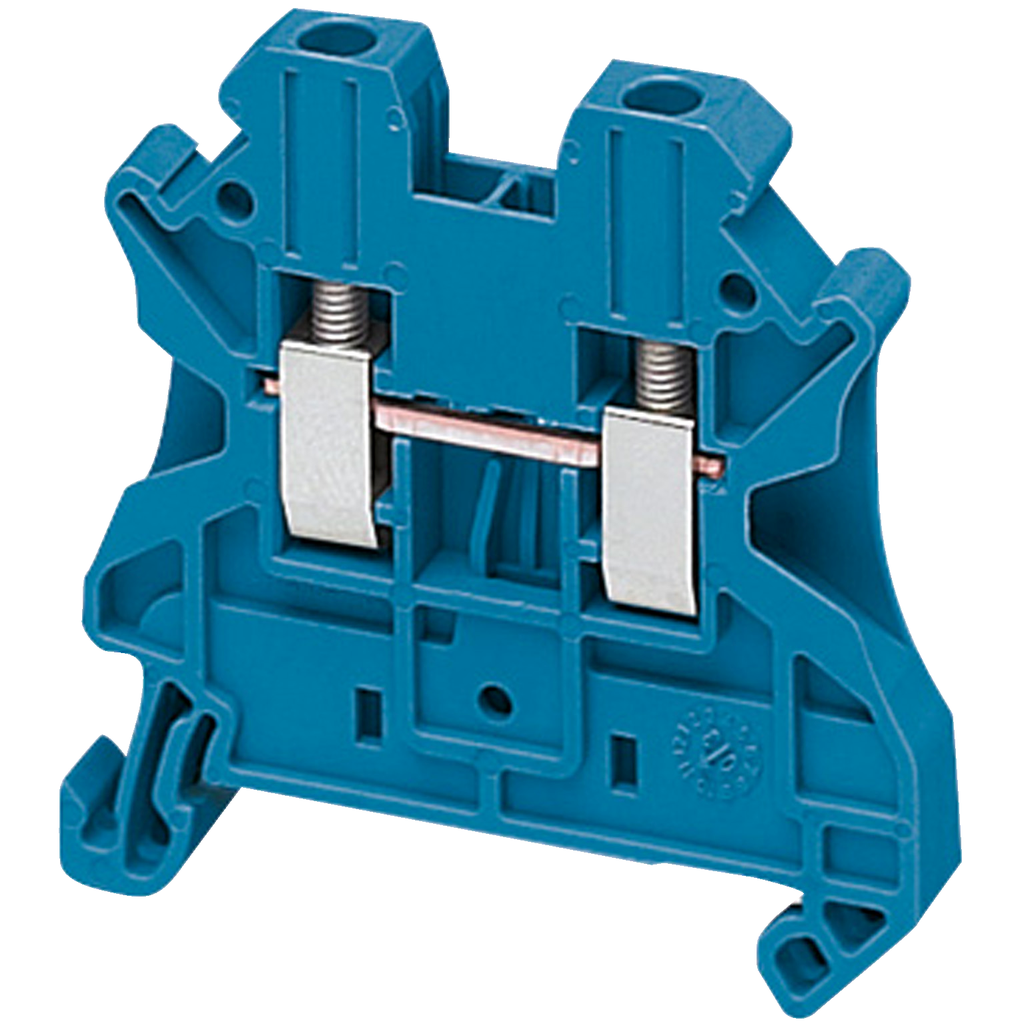

Schneider Electric NSYTRV22BL SQD Terminal Block, Line 1000 Volt (Set of 50)

Product Description

Schneider Electric NSYTRV22BL is a terminal block designed for Linergy applications. It supports a nominal cross section of two point five millimeters and is rated for an operational voltage of six hundred volts, complying with CSA and cURus standards. The block's rated current is twenty four amps under standard conditions. It features a blue surface treatment and employs a clip-on mounting style with sideways connection facilitated by screw terminals. It is suitable for use with various spacial enclosures like Prisma and TeSys.

• Rated operational voltage of 1000 volts
• Ambient temperature range of -40 to 130 degrees Celsius
• Multi standards certified including ATEX and CSA

Product Highlights

This terminal block is perfect for various electrical connections and is sold in packs of fifty units for ease of installation and use.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: NSYTRV22BL
• Voltage: 1000 Volt
• Amperage: 24 Amp
• Weight: 0.29 oz
• Width: 0.204 in
• Height: 1.87 in
• Length: 1.87 in
• Material: Polyamide, Copper Alloy, Chromium-nickel Steel
