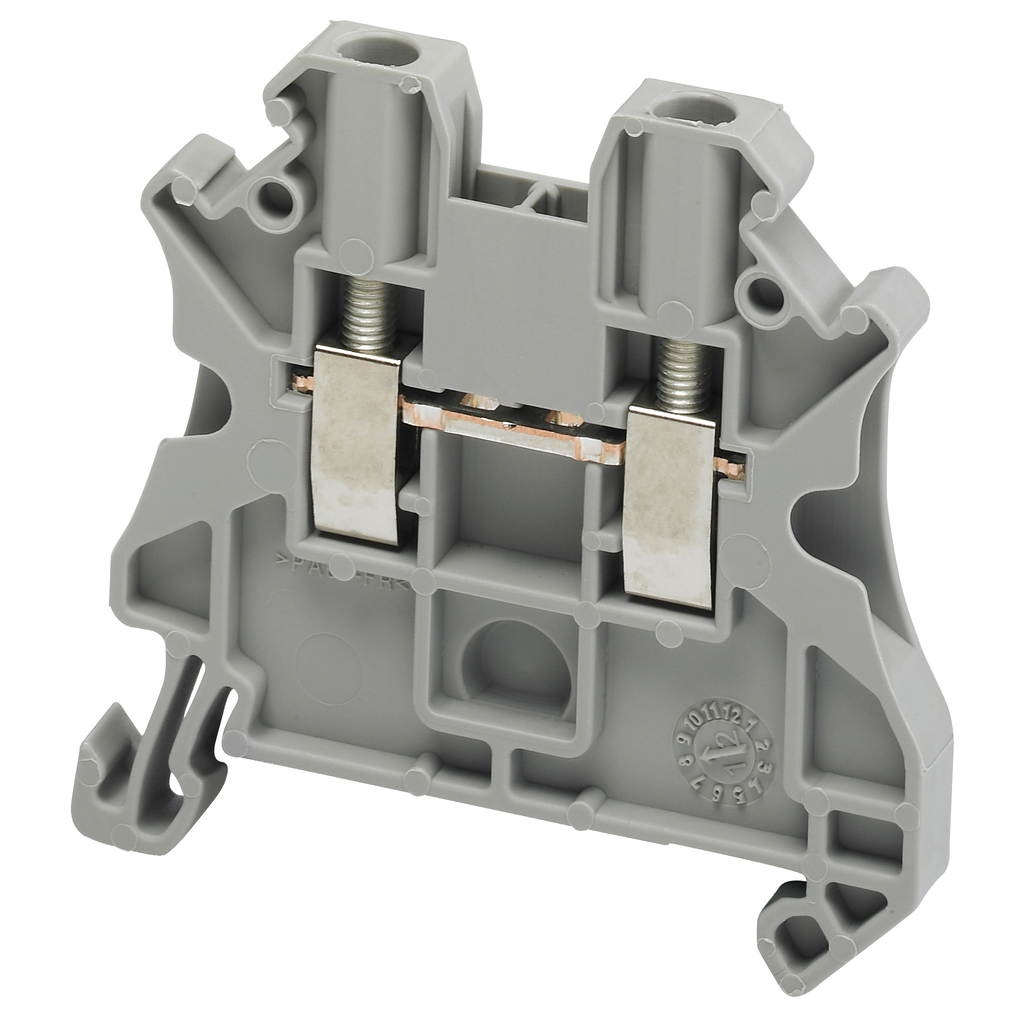

Schneider Electric NSYTRV22 Square D 2 mm 2-Point Gray 26 to 12 AWG Solid/Stranded Copper Screw Terminal Block

Product Description

Schneider Electric NSYTRV22 is a terminal block suited for various applications. It is designed for Linergy passthrough, with a nominal cross section of two point five millimeters. This terminal block offers a rated operational voltage of six hundred volts, in compliance with CSA/cURus, and up to one thousand volts according to EN/IEC 60947-7-1 standards. It can handle a rated current of twenty-four amps as per EN/IEC 60947-7-1, twenty amps per CSA/cURus, and twenty-two amps for ATEX Exe II standards.

• Compatible with spacial enclosures, such as Prisma G and Prisma Pack.
• Features a clip-on mounting system for easy installation.
• Temperature range for operation is between negative forty and one hundred thirty degrees Celsius.

Product Highlights

This product is certified for multiple standards including ATEX, CSA, cURus, and VDE. It is compliant with Green Premium, RoHS, and REACH regulations.

Product Information

Standard Information

• Catalog Number: NSYTRV22
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage: One thousand volts
• Amperage: Twenty-four amps
• Material: Chromium-nickel steel, copper alloy, polyamide
• Dimensions: Length forty-seven point seven mm, Width five point two mm, Height forty-seven point five mm
• Weight: Zero point twenty-nine ounces
• Mounting Type: Clip-On
• Country of Origin: Germany
• Wire Size: Two point five mm
• Number of Terminations: Two
• Warranty: Eighteen months
