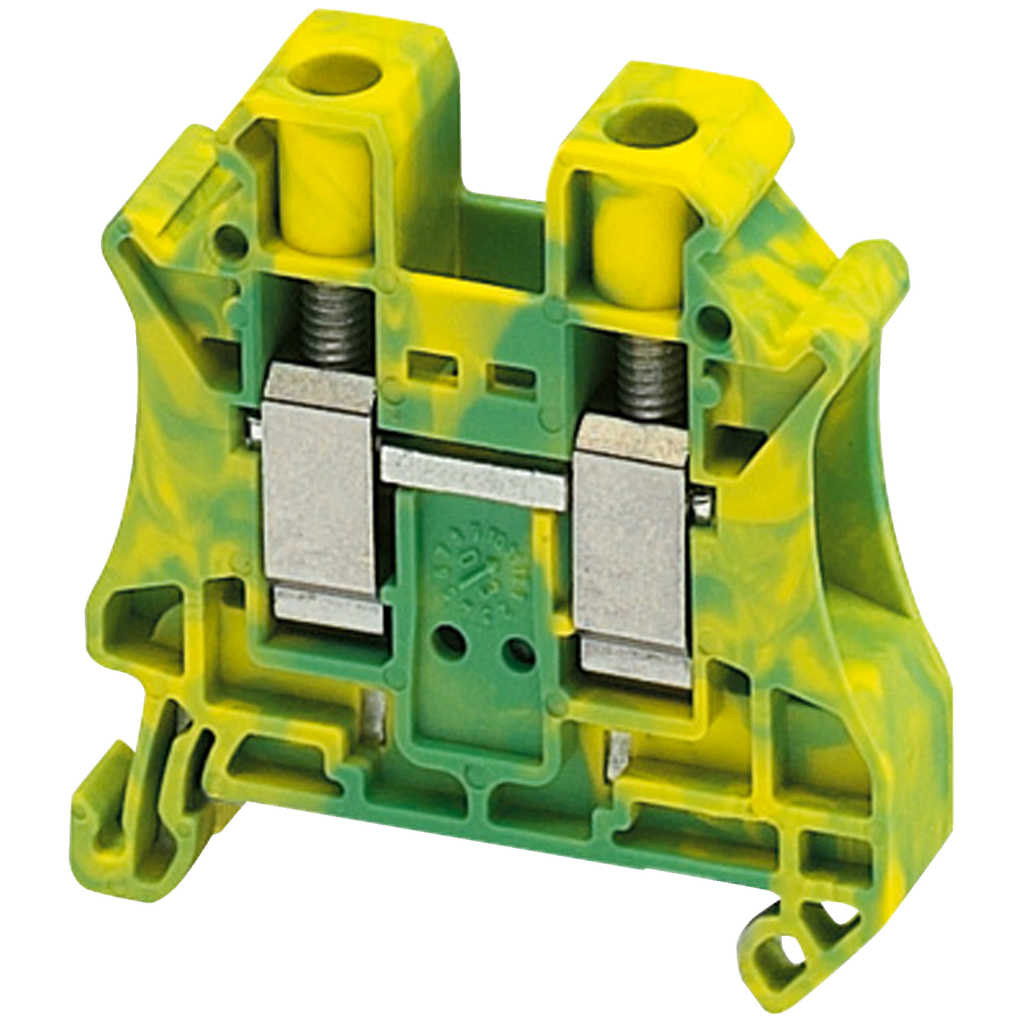

Schneider Electric NSYTRV102PE Square D Terminal Block 10 mm 2-Point Green/Yellow

Product Description

Schneider Electric offers the NSYTRV102PE terminal block. This model features a ten millimeter nominal cross section and is designed for solid and stranded copper wires ranging from twenty to six American Wire Gauge (AWG). It comes with a green-yellow surface treatment and mounts easily with a clip-on design. Connection and disconnection is done with a screwdriver. This terminal block is compatible with various enclosures including Prisma G, Prisma P, and Kaedra.

• Ambient temperature range from -40 to 130 degrees Celsius.
• Multi-standard certified including ATEX and CSA.
• Sold in lots of fifty units.

Product Highlights

This terminal block is suitable for use in power distribution applications. It is designed for easy installation and reliable connectivity.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: NSYTRV102PE
• Wire Size: 10 mm
• Mounting Type: Clip-On
• Material: Polyamide
• Weight: 1.04 oz
• Amperage: 76 Amp
• Color: Green-yellow
• Country of Origin: United States
