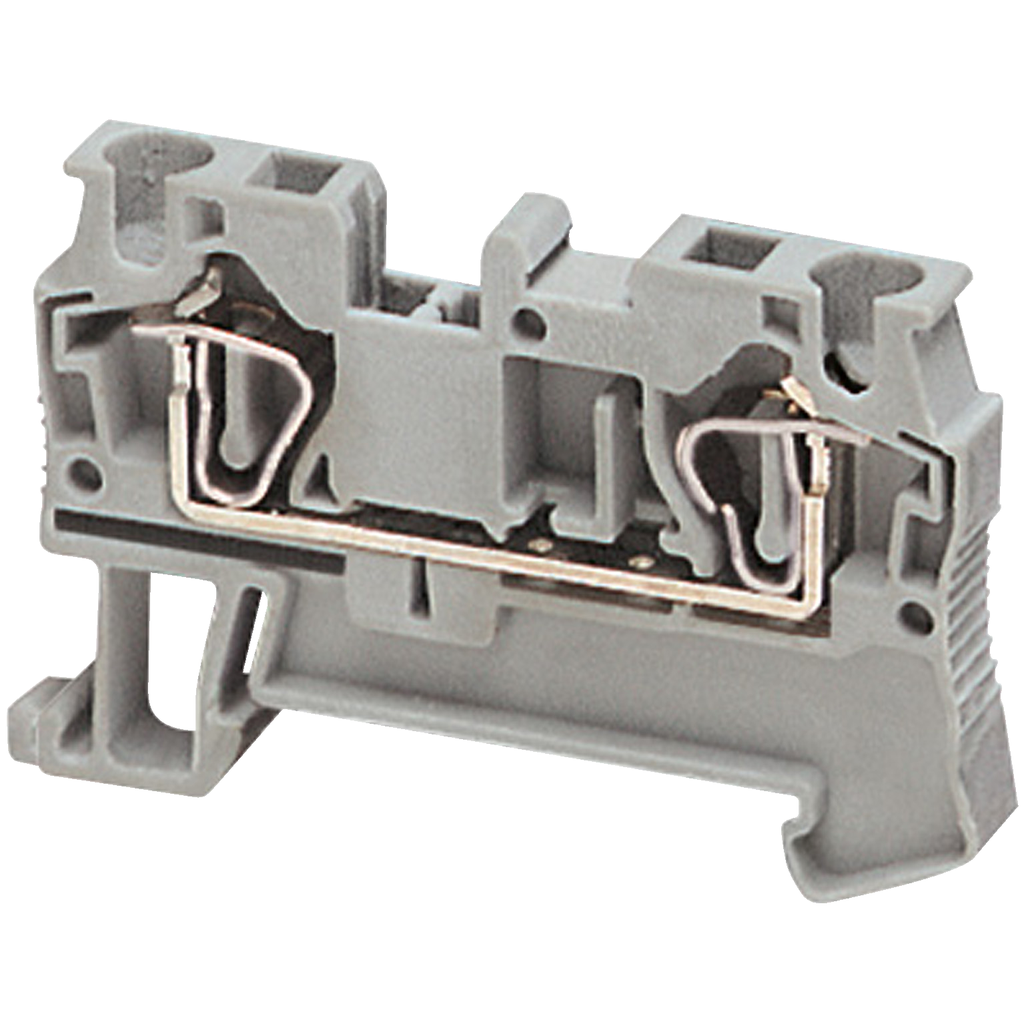

Schneider Electric NSYTRR42 Terminal Block, Linerg 600 Volt (Pack of 50) Replacement MPN

Product Description

Schneider Electric NSYTRR42 is a terminal block designed for passthrough applications. This product supports a nominal cross section of four millimeters and operates at a rated voltage of six hundred volts per CSA/cURus standards and eight hundred volts per EN/IEC 60947-7-1 standards. The current rating is thirty-two amps according to EN/IEC 60947-7-1 and thirty amps by CSA and cURus.

• Mounts using a clip-on method
• Compatible with various spacial enclosures
• Sold in sets of fifty units

Product Highlights

This terminal block offers reliable connections for various electrical systems. It is suitable for use in Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, and TeSys enclosures. Designed for temperatures from minus forty to one hundred thirty degrees Celsius, it complies with several international standards including ATEX, CSA, and IEC-Ex.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: NSYTRR42

Technical Specifications

• Voltage: 600 Volts
• Amperage: 32 Amps
• Connection Type: 1 x spring terminal upstream; 1 x spring terminal downstream
• Material: Polyamide, Copper Alloy, Chromium-nickel Steel
• Length: 56 mm
• Width: 6.2 mm
• Height: 36.5 mm
• Weight: 0.23 oz
