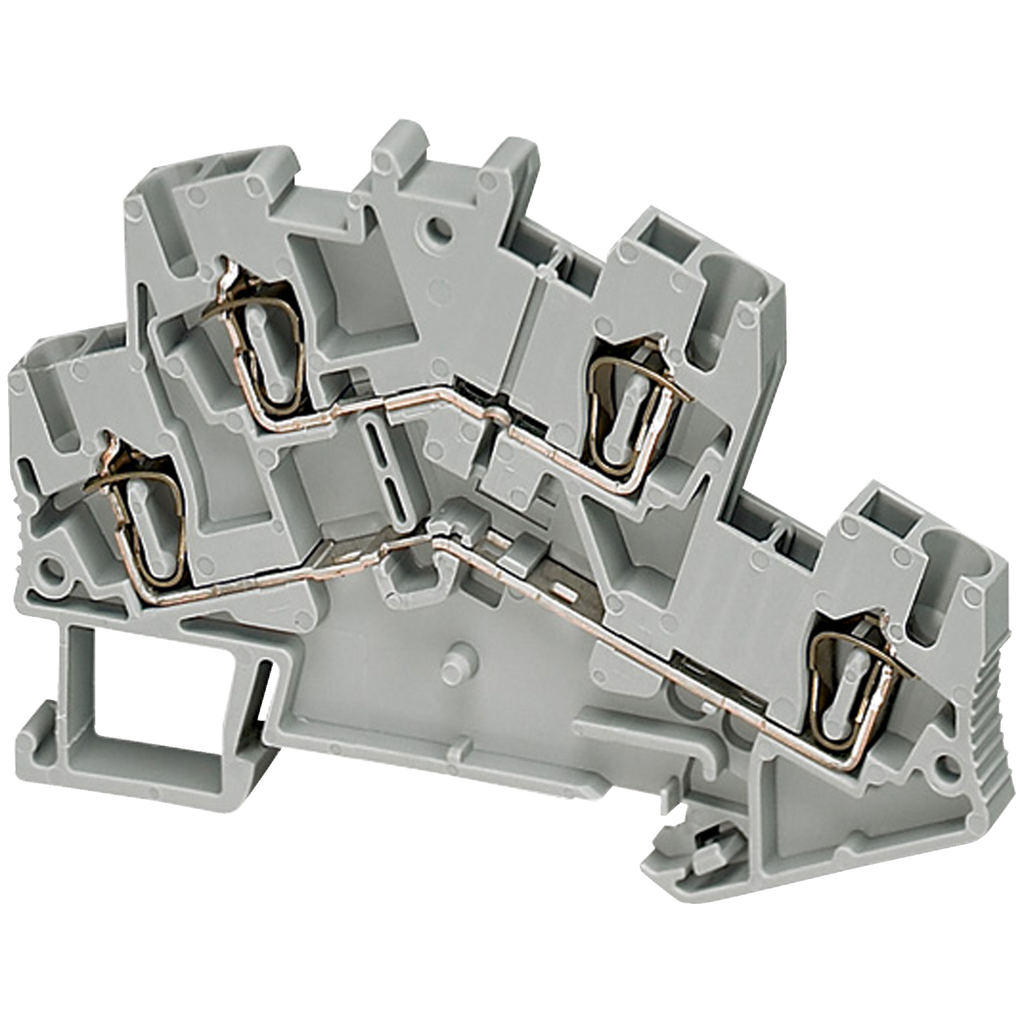

Schneider Electric NSYTRR24D Terminal Block Linergy TR 2.5mm Set of 50

Product Description

Schneider Electric NSYTRR24D is a terminal block designed for Linergy applications. This passthrough terminal block has a nominal cross section of two point five millimeters. It operates with a rated voltage of six hundred volts based on CSA standards, three hundred volts for cURus certification, and five hundred volts according to EN/IEC 60947-7-1. The device supports a rated current of twenty-two amperes under EN/IEC 60947-7-1 and twenty amperes for CSA and cURus.

• Compatible with various enclosures including Prisma G, Prisma P, Pragma, and TeSys.
• Mounting is clip-on type, facilitating easy installation.
• Sold in lots of fifty units.

Product Highlights

This terminal block is multi-certified including ATEX, CSA, and IEC-Ex, ensuring compliance with industry standards.

Product Information

Standard Information

• Catalog Number: NSYTRR24D
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage Rating: 600 Volt
• Current Rating: 20 Amp
• Wire Size: 2.5 mm
• Material: Polyamide, Copper Alloy, Chromium-Nickel Steel
• Mounting Type: Clip-On
• Weight: 0.43 oz
• Country of Origin: Germany
• Warranty Length: 18 months
