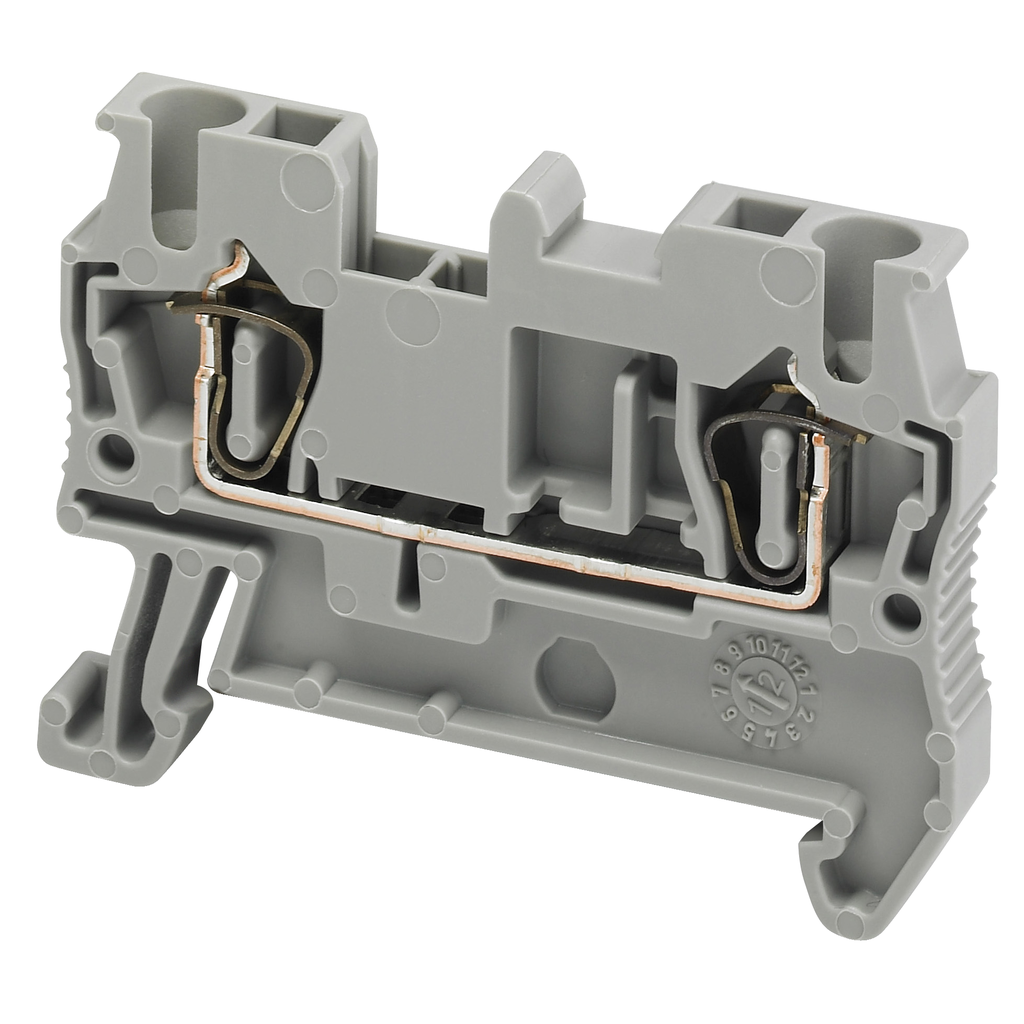

Schneider Electric NSYTRR22 Square D 2.5 mm Gray 2-Point Spring Terminal

Product Description

Schneider Electric offers the NSYTRR22 terminal block designed for Linergy applications. This terminal block features a nominal cross section of two point five millimeters. The operational voltage rating is six hundred volts in accordance with CSA/cURus standards and eight hundred volts per EN/IEC 60947-7-1. The maximum rated current is twenty-four amps per EN/IEC 60947-7-1 and twenty amps for CSA and cURus, ensuring reliable performance.

• Clip-on mounting design for easy installation.
• Compatible with spacial enclosures for various applications.
• Multi-standard certifications including ATEX, CSA, and VDE.

Product Highlights

This terminal block's operating temperature ranges from minus forty to one hundred thirty degrees Celsius, making it suitable for various environments. It is designed for both connection and disconnection using a flat screwdriver. The product is sold in quantities of fifty units and meets Green Premium standards, ensuring eco-friendliness and compliance with RoHS/REACH regulations.

Product Information

Standard Information

• Catalog Number: NSYTRR22
• Brand: Schneider Electric

Technical Specifications

• Material: Chromium-nickel Steel, Copper Alloy, Polyamide
• Voltage: 600 Volt
• Amperage: 20 Amp
• Size: 1.44 in
• Weight: 0.20 oz
• Width: 5.2 mm
• Height: 36.5 mm
• Length: 48.5 mm
