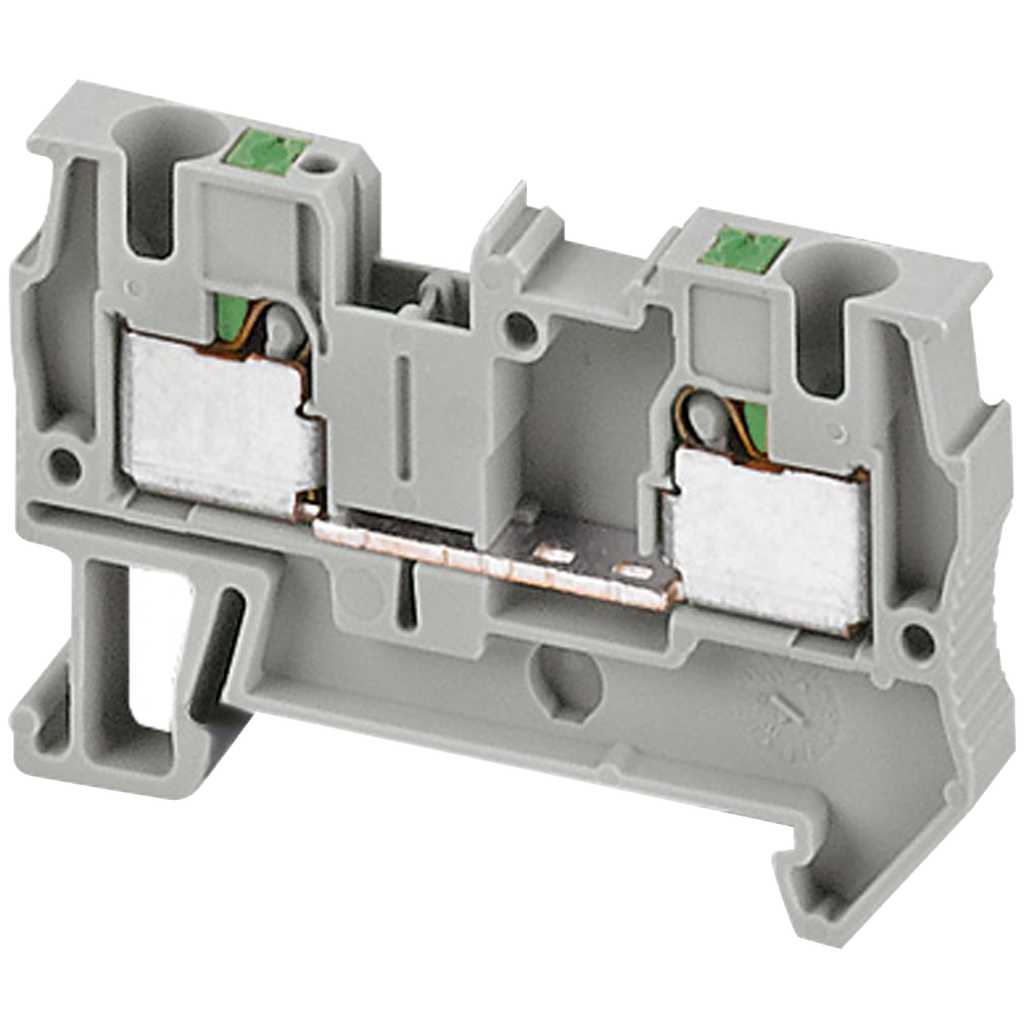

Schneider Electric NSYTRP42 Terminal Block Linergy TR Push-In Type Feed Through 2 Points 4mm

Product Description

The Schneider Electric NSYTRP42 is a terminal block designed for various electrical connections. It features a push-in design and provides a reliable feed-through connection with two points. This terminal block is suitable for professional applications in electrical and power distribution environments.

• Push-in connection for easy installation.
• Compatible with wire sizes of 4 mm.
• Can handle up to 32 amps at 600 volts.

Product Highlights

This terminal block is ideal for applications requiring secure and efficient electrical connections. Its compact size and robust build make it suitable for various environments.

Product Information

Standard Information

• Brand: Schneider Electric
• Catalog Number: NSYTRP42

Technical Specifications

• Size: 1.44 in
• Width: 0.24 in (6.2 mm)
• Height: 1.44 in (36.5 mm)
• Length: 2.20 in (56 mm)
• Weight: 0.34 oz (9.5 g)
• Voltage: 600 Volt
• Amperage: 32 Amp
• Material: Polyamide, Copper Alloy, Chromium-Nickel Steel
