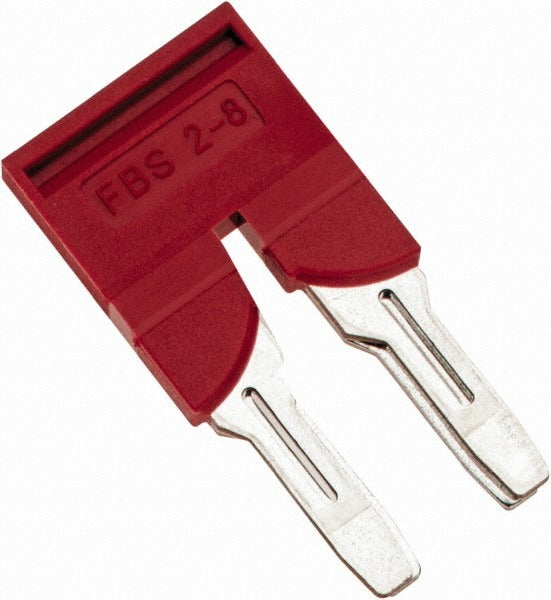

Schneider Electric NSYTRAL62 Terminal Block Plug-in Bridge

Product Description

The SCHNEIDER ELECTRIC NSYTRAL62 is a plug-in bridge accessory designed for use with NSYTR-series terminal blocks. It provides a reliable electrical connection between adjacent terminal block positions by bridging multiple terminals within a single row. Electricians and panel builders use this component during control panel assembly and wiring to simplify circuit interconnections without running additional discrete wires. At 0.01 pounds and measuring 1.2 inches in length, 0.4 inches in width, and 0.1 inches in height, the NSYTRAL62 is a compact, precision-fit component sized specifically for compatible NSYTR terminal blocks.

This plug-in bridge is suited for use in industrial control panels, electrical enclosures, and distribution assemblies where NSYTR spring or screw terminal blocks are installed. It is appropriate for both new panel builds and maintenance or retrofit work where terminal grouping needs to be established or modified. The compact form factor allows installation in space-constrained enclosures without disrupting adjacent terminal block positions.

Key Features

• Plug-in design allows fast installation and removal without special tools
• Compatible with both NSYTRR spring terminal blocks and NSYTRV screw terminal blocks
• Compact dimensions — 1.2 inches long, 0.4 inches wide, 0.1 inches tall — fit tightly within standard terminal block rows
• Lightweight at 0.01 pounds for minimal load contribution inside enclosures
• Sold individually, allowing precise quantity ordering for panel builds

Compatibility

The NSYTRAL62 is compatible with the following terminal blocks: NSYTRR62 Spring Terminal Block, NSYTRR62PE Spring Terminal Block, NSYTRR63 Spring Terminal Block, NSYTRV62 Screw Terminal Block, NSYTRV62NE Screw Terminal Block, NSYTRV62PE Screw Terminal Block, NSYTRV62TT Screw Terminal Block, and NSYTRV62TTD Screw Terminal.

Installation Notes

Installation is typically performed by a licensed electrician or qualified panel builder during control panel assembly or service. De-energize the panel and follow applicable lockout/tagout procedures before handling any terminal block components. The plug-in bridge seats directly into compatible terminal block positions by hand; no crimping or tooling is required. Verify alignment with the terminal block rail before seating to avoid damage to the bridge or terminal contacts.
