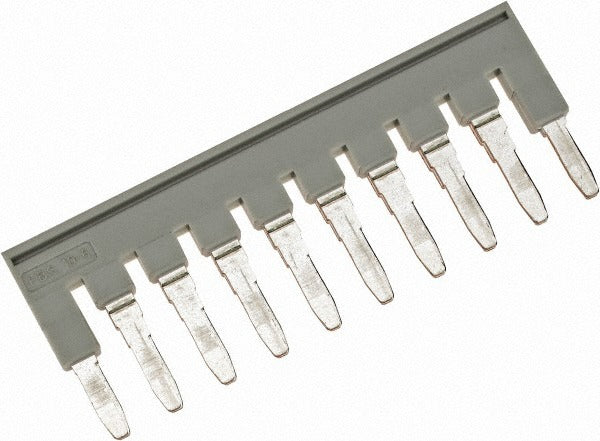

Schneider Electric NSYTRAL410GR Terminal Block Bridge

Product Description

The SCHNEIDER ELECTRIC NSYTRAL410GR is a plug-in bridge accessory designed for use with NSYT series terminal blocks. It provides a fast, reliable method of linking adjacent terminal positions without additional wiring, reducing installation time on panel builds and control cabinet assemblies. The bridge snaps directly into compatible push-in, spring, and screw terminal blocks, creating a secure electrical connection across multiple poles. At 0.02 pounds, the unit is compact and lightweight, measuring 2.4 inches in length, 1 inch in width, and 0.1 inches in height. Licensed electricians and panel builders working on industrial control and distribution assemblies are the primary installers of this component.

This plug-in bridge is intended for use in control panels, distribution boards, and industrial enclosures where NSYT series terminal blocks are installed. It is well suited for residential, commercial, and industrial electrical applications requiring grouped terminal connections. Compatible terminal block models are listed in the specifications below. This bridge fits both push-in and spring-clamp terminal block styles, giving installers flexibility across different panel configurations.

Key Features

• Plug-in design allows fast installation without additional wire or tooling
• Compatible with push-in, spring, and screw-type NSYT terminal blocks
• Compact footprint: 2.4 inches long, 1 inch wide, 0.1 inches tall
• Lightweight at 0.02 pounds, suited for dense panel layouts
• Sold individually, allowing precise quantity ordering for panel builds

Compatibility

Designed for use with the following SCHNEIDER ELECTRIC terminal blocks: NSYTRP42 Push-In Terminal Block, NSYTRP43 Push-In Terminal Block, NSYTRR42 Spring Terminal Block, NSYTRR43 Spring Terminal Block, NSYTRR44 Spring Terminal Block, NSYTRV42 Screw Terminal Block, and NSYTRV42M Screw Terminal Block.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements and local codes. De-energize the panel and verify zero voltage at all terminals before inserting or removing bridging accessories. The plug-in bridge should be pressed firmly into the terminal block slots until fully seated. Do not force the bridge into terminal models not listed in the compatibility section, as mismatched fitment can damage terminal block housings.
