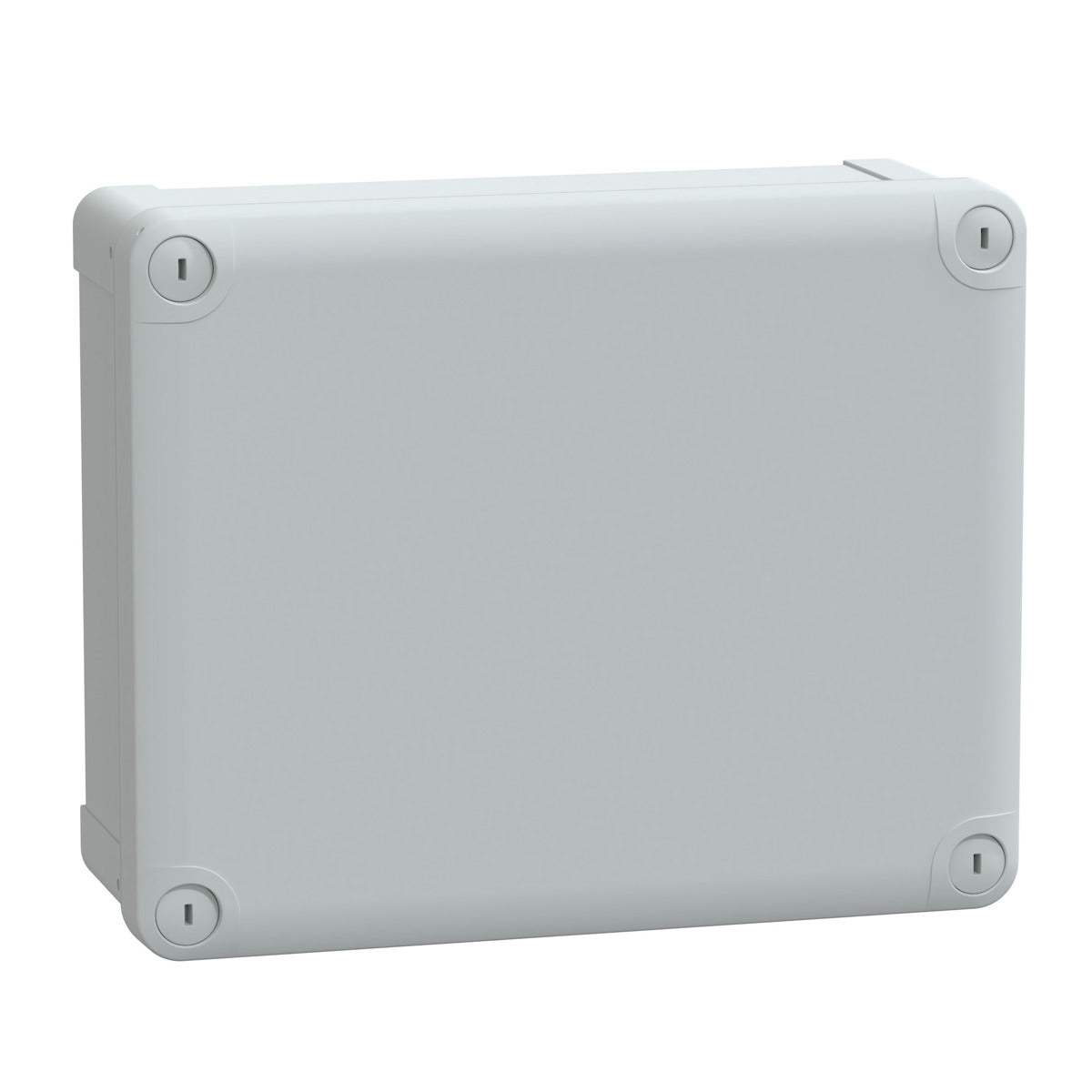

Schneider Electric NSYTBS24198 ABS box IP66 IK07 RAL7035 Int.H225W175D80 Ext.H241W194D194 Opaque cover H20

Product Description

The Schneider Electric NSYTBS24198 is an ABS box designed for industrial use. It features an opaque cover and is suitable for wall mounting. The internal dimensions are two hundred twenty-five millimeters by one hundred seventy-five millimeters by eighty millimeters, and the external dimensions are two hundred forty-one millimeters by one hundred ninety-four millimeters by one hundred ninety-four millimeters.

• IP66 rating for dust and water resistance
• IK07 impact protection
• Low plain cover with captive screw lock

Product Highlights

This product meets various certifications including DEMKO, SEMKO, and TV, ensuring reliability and safety in industrial environments.

Product Information

Standard Information

• Catalog Number: NSYTBS24198
• Manufacturer: Schneider Electric

Technical Specifications

• Material: ABS (acrylonitrile butadiene-styrene)
• Mounting: Wall
• Country of Origin: France
• Application: Multi-purpose
• Special Features: Captive screw flat outside sealed area
• Warranty Description: Contractual Warranty: 18 months
• Ambient Temperature (Operation): -25 to 60 degrees Celsius
• Ambient Temperature (Storage): -15 to 40 degrees Celsius
