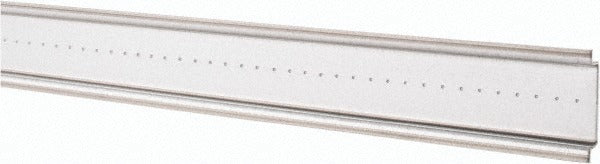

Schneider Electric NSYSDR200B Steel Din Rail 79 in

Product Description

The SCHNEIDER ELECTRIC NSYSDR200B is a steel DIN rail designed for mounting terminal blocks, circuit breakers, relays, and other DIN-compatible components inside electrical enclosures and control panels. At 79 inches (2 meters) long, 1.4 inches high, and 0.3 inches wide with a material thickness of 0.04 inches, this rail provides a full-length mounting surface for dense component layouts. The steel construction delivers the rigidity required for industrial and commercial panel builds. Electricians and panel integrators use this rail when assembling new enclosures or retrofitting existing ones.

This DIN rail is suited for commercial and industrial control panel applications where a standard 35 mm (1.4 inch) top-hat profile is required. It accommodates the full range of DIN-mount devices including terminal blocks, contactors, motor starters, and miniature circuit breakers. The 79-inch length allows installers to cut the rail to required lengths on-site using standard rail cutters, making it adaptable to a wide range of enclosure sizes. Panel builders working on automation, power distribution, and building controls will find this rail a standard fit for most assemblies.

Key Features

• 79-inch (2-meter) length provides ample stock for multiple panel cuts
• Standard 35 mm top-hat profile fits the full range of DIN-mount components
• Steel construction with 0.04-inch wall thickness for rigid component support
• RoHS compliant for use in environmentally regulated installations
• 0.3-inch width and 1.4-inch height match industry-standard DIN rail dimensions

Compatibility

Designed as an OEM-style replacement and standard mounting solution for DIN-compatible devices requiring a 35 mm top-hat rail profile in electrical enclosures and control panels.

Installation Notes

Installation is typically performed by licensed electricians or panel integrators. De-energize the enclosure and lock out all power sources before working inside any electrical panel. The rail can be cut to length using a DIN rail cutter or hacksaw and secured to the enclosure back panel with appropriate mounting hardware. Follow NEC requirements for enclosure wiring and component spacing.
