Schneider Electric NSYS3DC6620 Square D NEMA 4/4X Steel Wall Mount Enclosure

Product Description

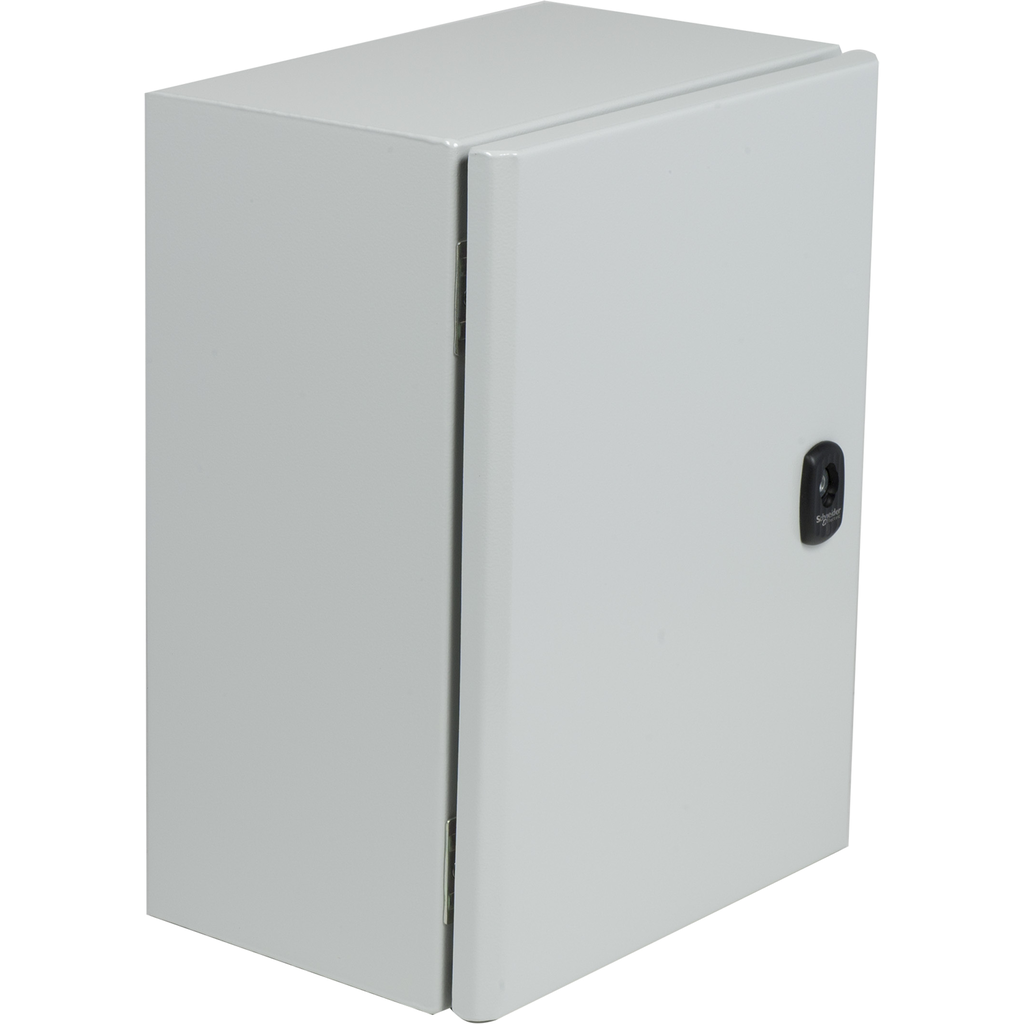

Schneider Electric NSYS3DC6620 is a wall-mounted steel enclosure designed for various applications. This enclosure measures twenty-three point six two inches in height, seven point eight seven inches in width, and twenty-three point six two inches in depth. It is suitable for outdoor use and rated for NEMA 4/4X protection. The enclosure is made from durable steel and has a smooth surface finish, making it an ideal choice for housing electrical components.

• Dimensions: 23.62 inches x 7.87 inches x 23.62 inches
• Material: Steel, with epoxy-polyester powder finish
• IP66 and IK10 rated for robust environmental protection

Product Highlights

This enclosure serves multi-purpose applications, featuring a single piece construction and gutter-shaped front profile for efficient drainage.

Product Information

Standard Information

• Brand: Schneider Electric
• Catalog Number: NSYS3DC6620

Technical Specifications

• Width: 600 mm
• Height: 600 mm
• Weight: 30.86 lb
• Material: Steel
• Country of Origin: Spain
• Warranty Length: 18 months
• GTIN: 03606480314094
• Applications: Multi-purpose; suitable for outdoor use
