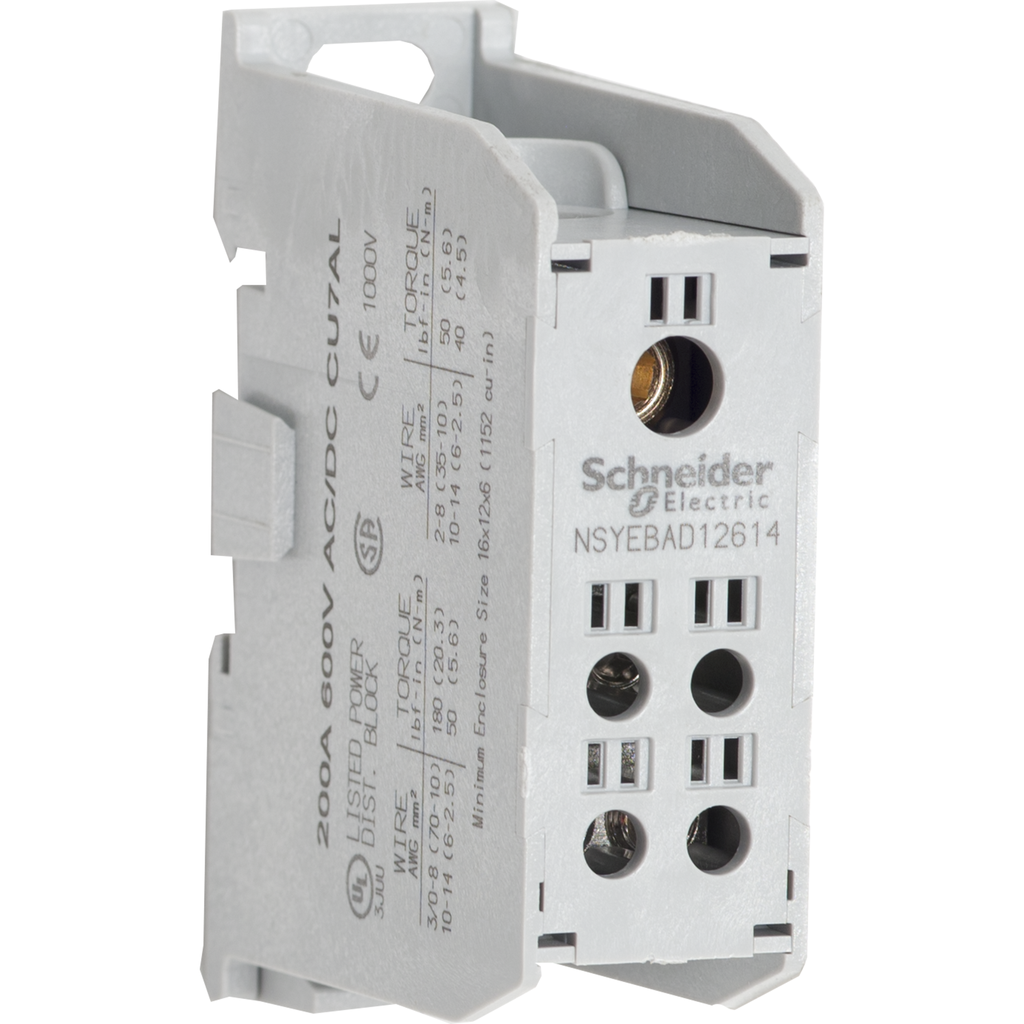

Schneider Electric NSYEBAD12614 Power Distribution Block 200A Cu 155A Al 600V Al Lug Rail

Product Description

The Schneider Electric NSYEBAD12614 is a power distribution block designed for safe and efficient electrical installations. This enclosed IEC version of the NEMA 9080 block ensures finger protection at the terminals, compliant with IP20 standards. It features one pole modular units with an interlocking dovetail design, allowing for flexible multi-pole configurations.

• Short-Circuit Current Ratings (SCCR) up to 100 kA.
• Accepts a range of wire sizes from 14 AWG to 3/0 AWG for copper and 6 AWG to 3/0 AWG for aluminum.
• Compatible with standard 35 mm DIN rails for easy mounting.

Product Highlights

This product supports extensive applications in power distribution, making it a reliable choice for professionals in the electrical trade.

Product Information

Standard Information

• Catalog Number: NSYEBAD12614
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage: 600 Volt
• Amperage: 200 Amp
• Material: Thermoplastic Block
• Height: 3.61 inches
• Width: 1.21 inches
• Depth: 2.71 inches
• Country of Origin: USA
• Certifications: UL Listed, CSA Certified, RoHS Compliant
