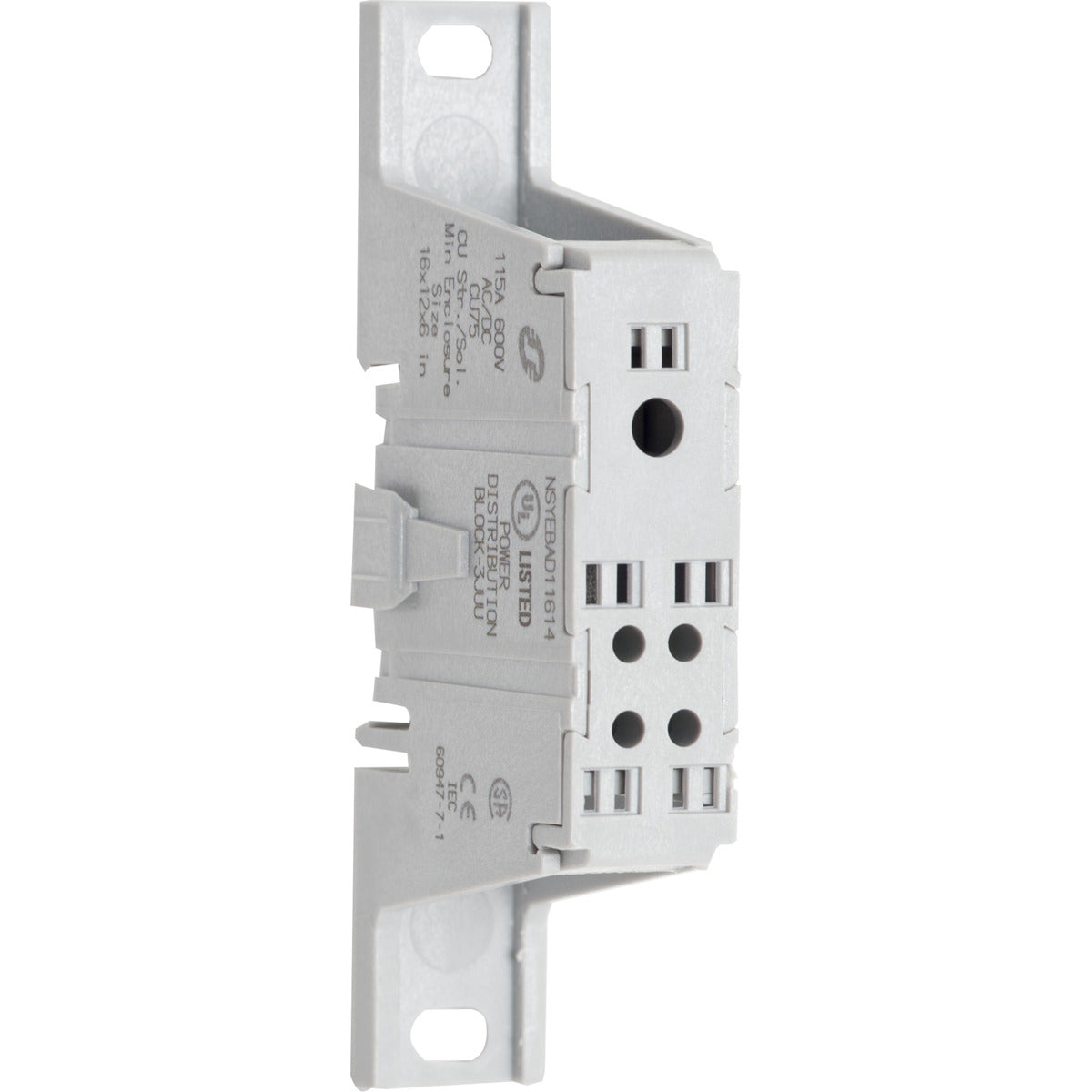

Schneider Electric NSYEBAD11614 Power Distribution Block 115A 600V

Product Description

The Schneider Electric NSYEBAD11614 Power Distribution Block is designed for secure, efficient power distribution within industrial settings. Manufactured by Schneider Electric, this unit is encased, ensuring compliance with the IP20 standard for finger safety at the terminals. It is engineered as a one-pole modular unit with an interlocking dovetail, allowing the creation of multipole configurations tailored to specific project needs. The block supports a Short-Circuit Current Rating (SCCR) of up to 65 kA using appropriate fuses and circuit breakers. It's suitable for copper or aluminum lugs, with tin-plated aluminum lugs provided.

• Modular design enables customizable multipole arrangements.
• IP20 rated terminals for enhanced safety.
• Supports up to 65 kA SCCR for robust circuit protection.

Product Highlights

This unit's construction includes a 35 mm DIN rail and direct panel mounting options, with dimensions of 4.14 inches in height, 0.85 inches in width, and 1.71 inches in depth.

Product Information

Standard Information

• Brand: Schneider Electric
• Model: NSYEBAD11614

Technical Specifications

• Height: 4.14 inches
• Width: 0.85 inches
• Depth: 1.71 inches
• Voltage: 600 Volt
• Amperage: 115 Amp
• Material: Thermoplastic
• Certifications: UL Listed, CSA Certified, RoHS Compliant
• Country of Origin: Made in USA
• Short Circuit Current Rating (SCCR): 65 kA
• Terminal Configuration: 1 line side, 4 load side
