Schneider Electric NSYCVF850M115PF SQD NSYCVF850M115PF ClimaSys forced 850M3/H 115V with Outlet Grille and Filter G2

Product Description

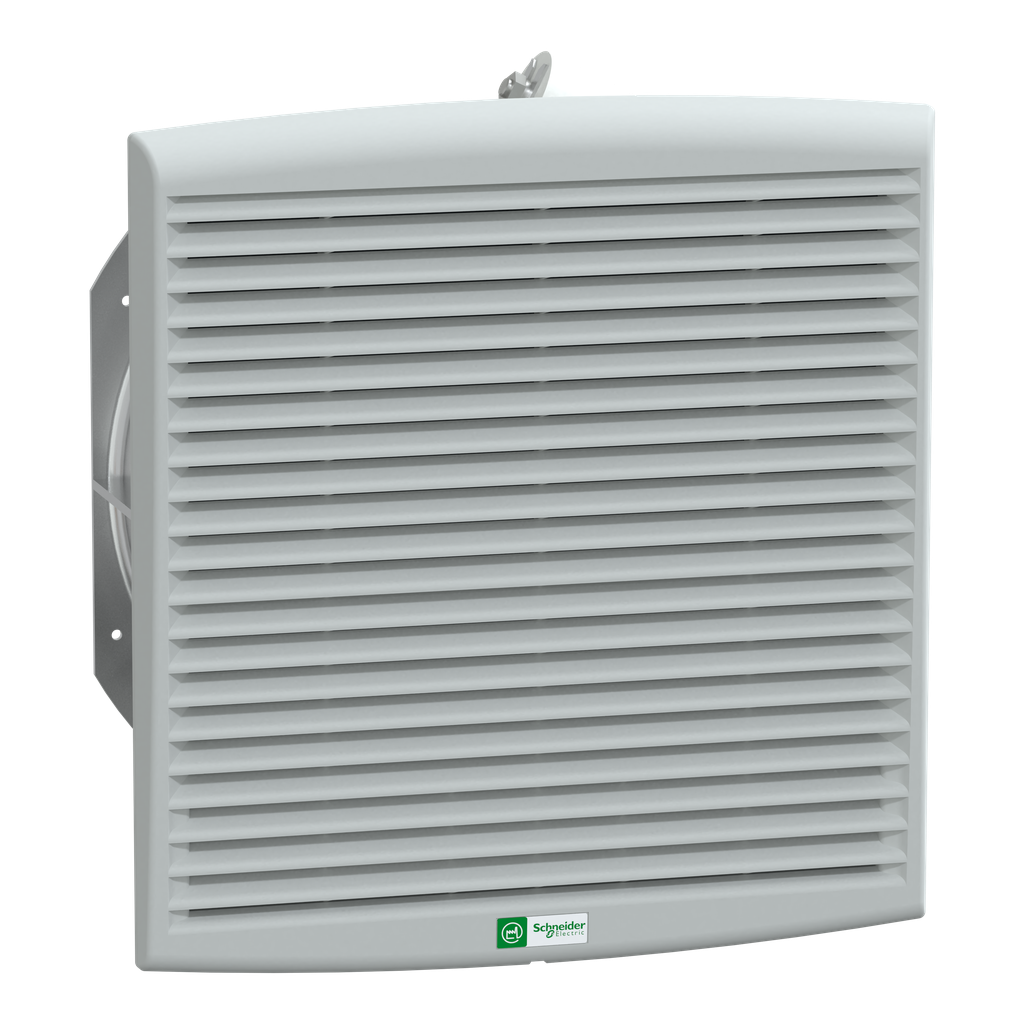

The Schneider Electric NSYCVF850M115PF is a ClimaSys CV Axial motor ventilator designed for effective forced ventilation. Operating on 115 volts, this unit runs at either 50Hz or 60Hz, with a power requirement of 145W at 50Hz and 182W at 60Hz. It provides a free flow rate of up to 944 cubic meters per hour at 50Hz and 983 cubic meters per hour at 60Hz. The unit measures three hundred thirty-six millimeters in length, three hundred sixteen millimeters in width, and one hundred sixty-two millimeters in depth. The cut-out dimensions required for installation are two hundred ninety-one millimeters by two hundred ninety-one millimeters.

• Protection rating of IP54 ensures durability.
• Equipped with two protective grilles on the front and rear.
• Offers connections via terminal blocks for convenience.

Product Highlights

This model is built with an outlet grille made of injected thermoplastic and features a grey finish (RAL 7035).

Product Information

Standard Information

• Catalog Number: NSYCVF850M115PF
• Manufacturer: Schneider Electric

Technical Specifications

• Weight: 9.04 lb
• Input Voltage: 115 V
• Amperage: 1.279 Amp
• Material: Thermoplastic
• Country of Origin: France
• Warranty Length: 18 months
• Applications: Forced ventilation at up to 850 m3/h
• Storage Temperature: -40 to 70 degrees Celsius
