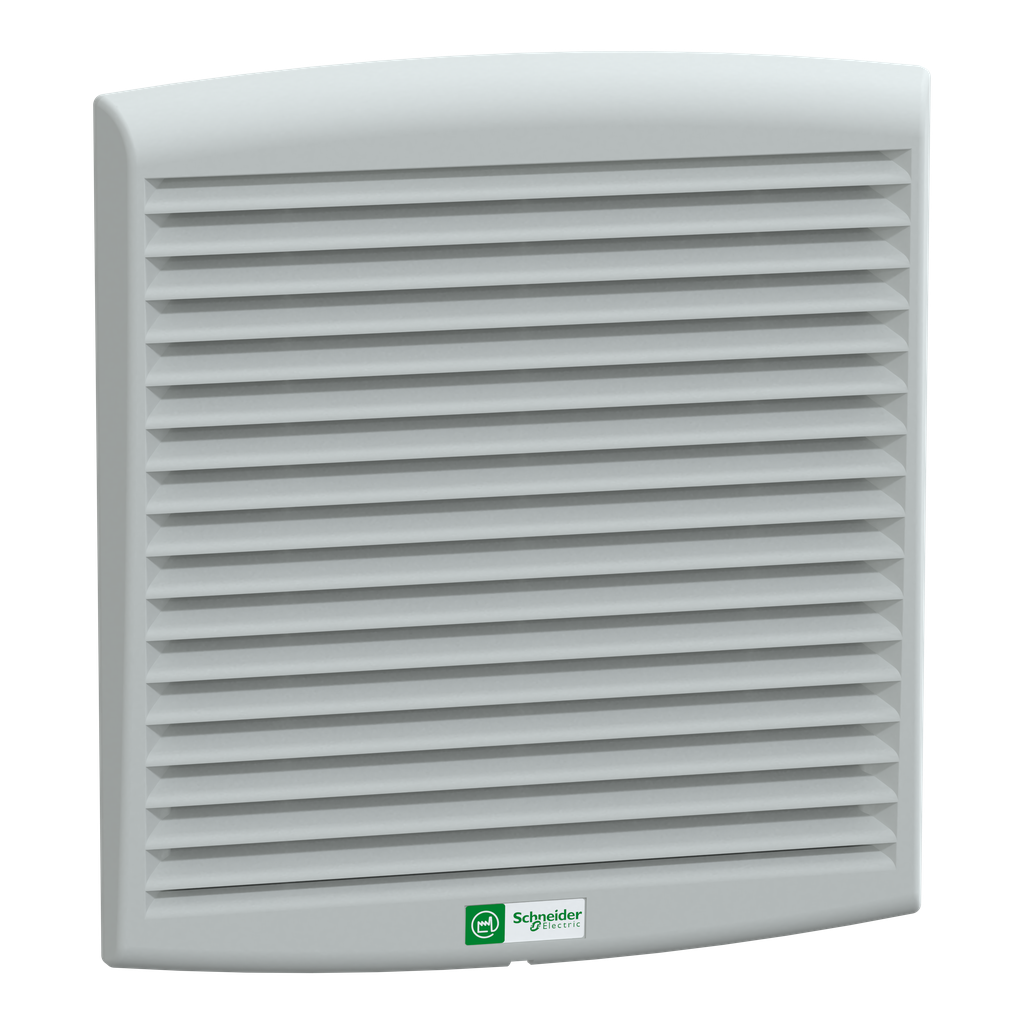

Schneider Electric NSYCVF300M230PF SQD ClimaSys forced Vent 300m3/h Replacement MPN

Product Description

Schneider Electric's NSYCVF300M230PF is a ClimaSys forced ventilator designed for efficient air circulation. This model operates at two voltage frequencies: 230 volts with a capacity of three hundred cubic meters per hour at fifty hertz and three hundred fifty cubic meters per hour at sixty hertz. It is suitable for applications that require forced air ventilation in various environments.

• Dimensions: Two hundred sixty-eight millimeters by two hundred forty-eight millimeters by one hundred sixteen millimeters.
• Manufactured with thermoplastic materials, ensuring durability.
• Protection rating IP54 for dust and splash resistance.

Product Highlights

The NSYCVF300M230PF features a faston connector for easy installation. This unit includes two protective grilles, ensuring safety during operation. The outlet grille is injected thermoplastic (ASA PC), complying with the Grey RAL 7035 standard.

Product Information

Standard Information

• Catalog Number: NSYCVF300M230PF
• Manufacturer: Schneider Electric

Technical Specifications

• Input Voltage: 230 V
• Amperage: 0.16 Amp
• Operating Temperature: -10 to 70 degrees C
• Storage Temperature: -40 to 70 degrees C
• Net Weight: 1.3 kg
• Material: Thermoplastic
• Warranty Length: 18 months
• Country of Origin: France
