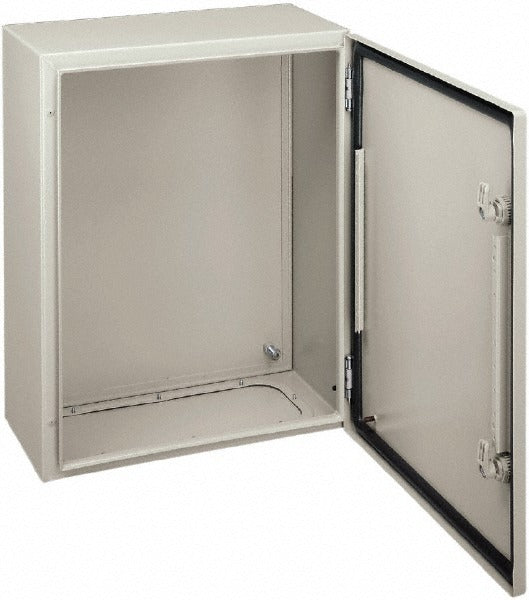

Schneider Electric NSYCRN65200 Steel Enclosure Nema 4

Product Description

The SCHNEIDER ELECTRIC NSYCRN65200 is a standard steel electrical enclosure rated NEMA 4, designed to protect electrical components from dust, dirt, and water ingress in demanding environments. Measuring 19.7 inches wide, 23.6 inches high, and 7.9 inches deep, it provides substantial interior volume for panel layouts, terminal blocks, drives, and controls. The enclosure features a hinged cover finished in gray epoxy-polyester powder coat, delivering corrosion resistance suitable for both indoor and outdoor installations. It is installed by licensed electricians and industrial maintenance technicians on commercial and light industrial projects where environmental protection of electrical gear is required.

This enclosure is suited for residential, commercial, and light industrial applications where a NEMA 4 rating is required. Typical installations include motor control panels, PLC enclosures, junction boxes, and distribution assemblies in manufacturing facilities, utility rooms, and outdoor equipment pads. The hinged cover simplifies field access during commissioning and maintenance without requiring complete cover removal. The steel construction and powder coat finish hold up in wash-down environments and locations subject to rain or hose-directed water.

Key Features

• NEMA 4 rating provides protection against windblown dust, rain, splashing, and hose-directed water
• Steel construction with gray epoxy-polyester powder coat finish for corrosion resistance
• Hinged cover design allows quick access without full panel disassembly
• Meets cUL, UL, IEC 62208, and RoHS compliance requirements
• Interior dimensions support a wide range of panel configurations and component layouts

Compatibility

Designed as an OEM-style standard electrical enclosure suitable for use in commercial and industrial electrical panel assemblies requiring NEMA 4 protection in a steel hinged-cover format.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the NEC and applicable local codes. Shut off and lock out all power sources before making any internal wiring connections. Verify that all conduit entries and knockouts are properly sealed after wiring to maintain the NEMA 4 rating. Mount to a structurally adequate surface using appropriate hardware to support the weight of the enclosure and its contents.
