Schneider Electric NSYCRN44200 Nema 4 Steel Enclosure

Product Description

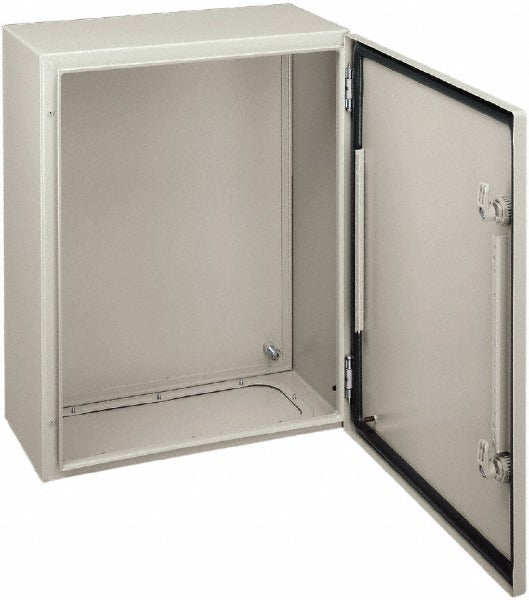

The SCHNEIDER ELECTRIC NSYCRN44200 is a standard steel electrical enclosure rated NEMA 4, designed to house and protect electrical components in industrial and commercial environments. It measures 15.7 inches wide, 15.7 inches high, and 7.9 inches deep, offering a compact footprint suitable for wall-mount installations. The enclosure features a hinged cover in gray epoxy-polyester powder coat finish, providing corrosion resistance and a durable exterior. It carries UL and cUL listings along with IEC 62208 and RoHS compliance, making it appropriate for a wide range of North American and international applications. Licensed electricians and industrial maintenance technicians are the primary installers of this type of enclosure.

This enclosure is suited for residential, commercial, and light industrial applications where a NEMA 4 rating is required to protect against windblown dust, rain, splashing water, and hose-directed water. It is a standard wall-mount type commonly used in electrical panel installations, control panel builds, junction box applications, and equipment protection scenarios where a steel enclosure with a hinged cover is specified. The gray powder coat finish blends with standard electrical equipment aesthetics and resists surface corrosion in moderately demanding environments.

Key Features

• NEMA 4 rating provides protection against windblown dust and water ingress including hose-directed water
• Hinged cover allows full-swing access for wiring and component installation without removing fasteners
• Epoxy-polyester powder coat finish in gray delivers corrosion resistance and a clean appearance
• Steel construction provides structural rigidity and impact resistance
• UL, cUL, and IEC 62208 listed with RoHS compliance for broad application suitability
• Compact 15.7 x 15.7 x 7.9 inch footprint fits standard wall-mount locations

Compatibility

Designed as an OEM-style standard electrical enclosure suitable for NEMA 4 indoor and outdoor wall-mount applications requiring a steel hinged-cover box.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Disconnect and lock out all power sources before working inside or near the enclosure. Verify that all conduit knockouts and sealing fittings are properly installed to maintain the NEMA 4 ingress protection rating after wiring is complete. Do not overtighten cover hardware or modify the enclosure in a way that compromises its listed rating.
