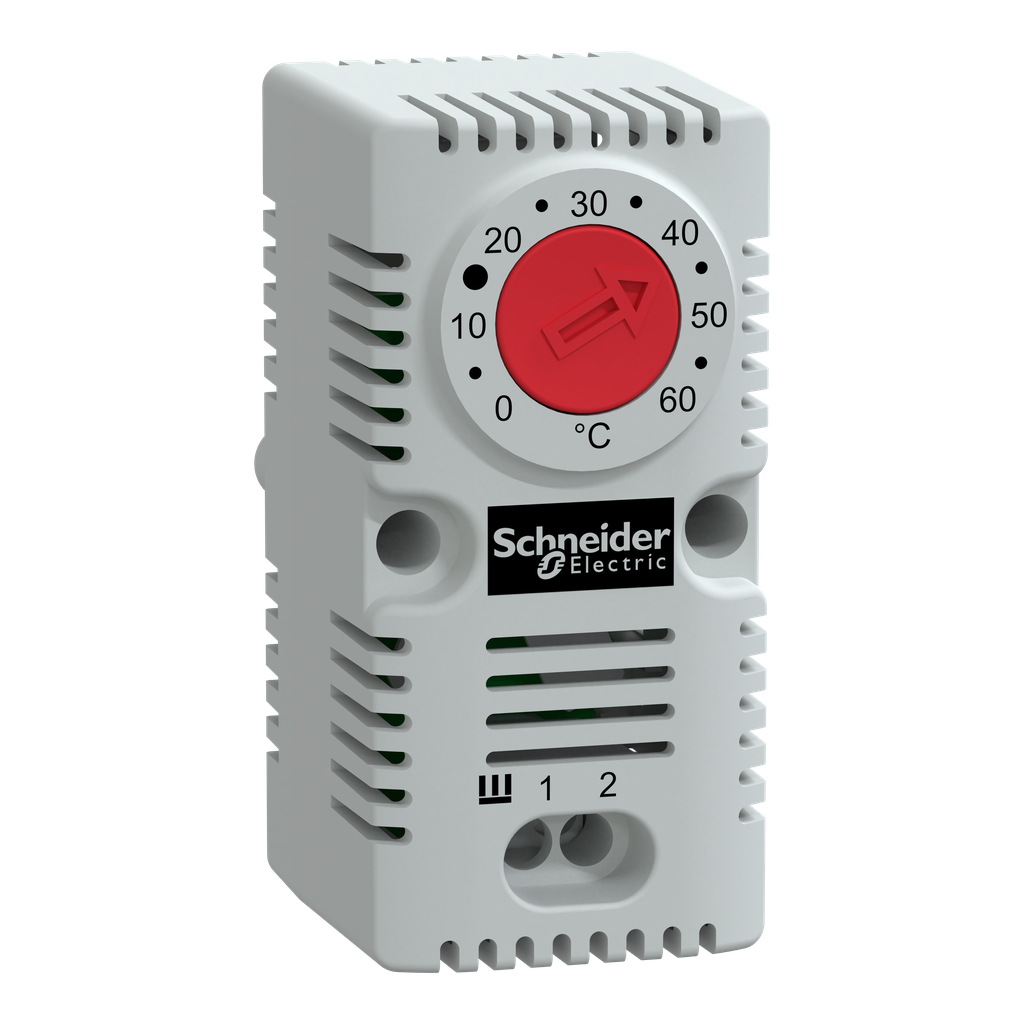

Schneider Electric NSYCCOTHC ClimaSys CC - simple thermostat 250V - range of temperature 060C - NC - C

Product Description

The Schneider Electric NSYCCOTHC is a ClimaSys CC simple thermostat designed for basic heating requirements. This thermostat operates at 250V AC and features a bimetal sensor with NC contact type, making it suitable for various heating applications. The compact dimensions of this unit are sixty-eight millimeters in height, thirty-three millimeters in width, and forty-four millimeters in depth. It connects electrically using four terminals with a two point five millimeter wiring setup.

• Temperature range of zero to sixty degrees Celsius.
• Easy mounting capabilities via a thirty-five millimeter DIN rail or other standard methods.
• Made from polycarbonate with self-extinguishing properties according to UL94 (material V0).

Product Highlights

This thermostat is ideal for resistance heating and alarm applications, providing a reliable solution for controlling temperatures in various environments.

Product Information

Standard Information

• Catalog Number: NSYCCOTHC
• Manufacturer: Schneider Electric

Technical Specifications

• Input Voltage: 250 V
• Sensor Type: Bimetal
• Height: 68 mm
• Width: 33 mm
• Depth: 44 mm
• Material: Polycarbonate
• Weight: 40 g
• Warranty Length: 18 months
• Country of Origin: Germany
