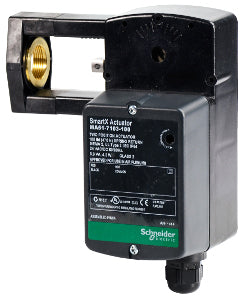

Schneider Electric MS51-7103-120 Actuator 0 to 3 VDC 24 VAC/VDC Replacement MS51-7103-120

Product Description

Schneider Electric MS51-7103-120 is an electric actuator designed for precise control in globe valve applications. The actuator operates with a proportional control signal ranging from zero to three VDC, ensuring reliable performance. It supports both 24 VAC and 24 VDC inputs, making it flexible for various installations. This device features spring return functionality to ensure safe operation during power loss.

• Actuator Type: Electric
• Force Output: 105 lbf
• Control Signal Range: 0 to 3 VDC

Product Highlights

Perfect for use with globe valves, this actuator combines efficiency and dependability for HVAC and plumbing applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Power Input Voltage: 20 to 30 VDC, 24 VAC/VDC
• Connection Length: 3 ft Plenum
• Force: 105 lbf
• Protection Rating: NEMA 2
• Duty Cycle: Continuous
• Operating Temperature: -30 to 60 °C
• Storage Temperature: -40 to 71 °C
• Current Consumption: 140 mA
