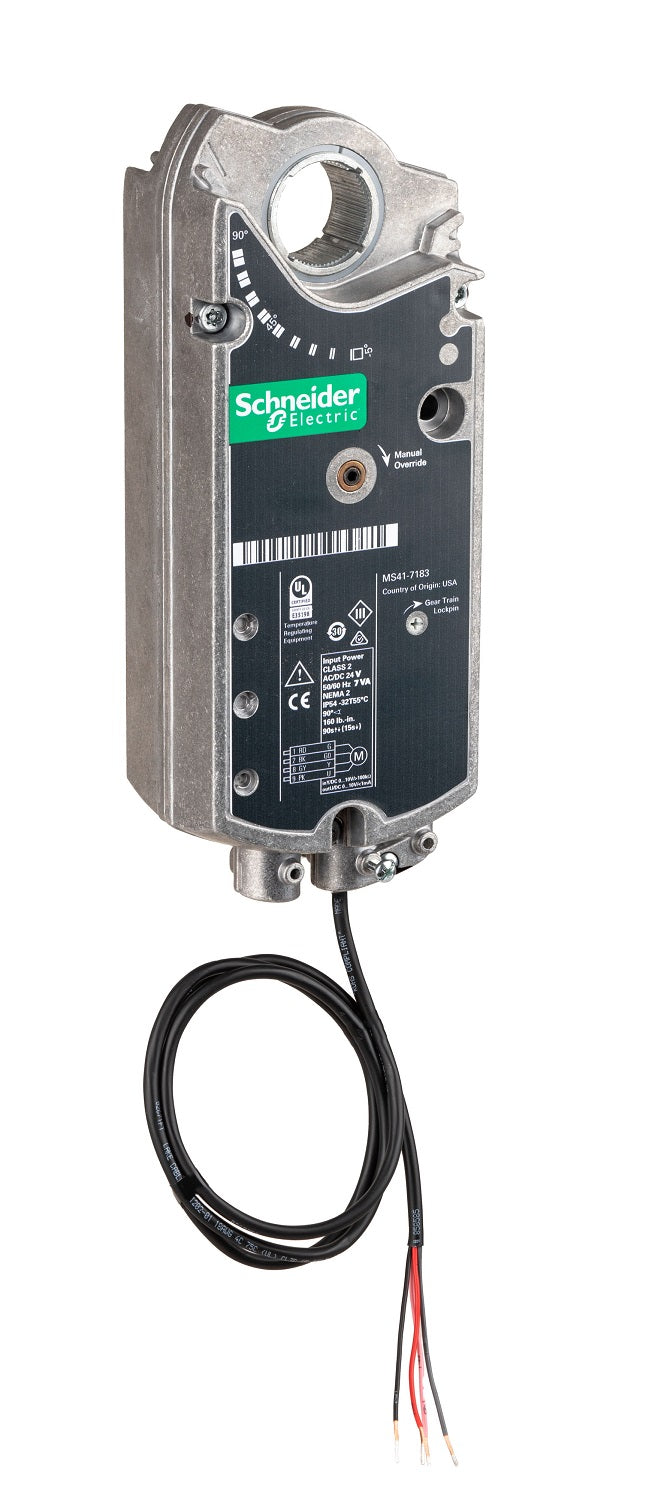

Schneider Electric MS41-7183 SmartX Damper Actuator 24V AC/DC

Product Description

The Schneider Electric MS41-7183 is a high-performance smart damper actuator designed for precise control within HVAC systems. This electric actuator operates on 24 volts AC or DC and features a proportional control signal ranging from zero to ten volts DC. It utilizes a spring return mechanism for immediate response during power loss.

• Torque rating: 160 lb-in (18 Nm)
• Mechanical movement: Rotary
• Protection rating: NEMA 2

Product Highlights

This actuator is suitable for a variety of damping applications in HVAC systems. Its compact design and robust performance make it an ideal choice for trade professionals.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Line: SmartX

Technical Specifications

• MPN: MS41-7183
• Power Input Voltage: 24 V AC/DC
• Control Signal: 0-10 VDC
• IP Rating: IP54
• Ambient Temperature Operating Range: -32°C to 55°C
• Spring Return Timing: 15 s
• Current Consumption: 3 W
• Torque: 160 in-lb
