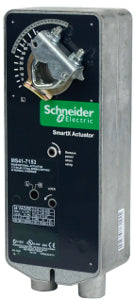

Schneider Electric MS41-7073-502 SmartX Damper Actuator 24 Vac/Vdc

Product Description

Schneider Electric MS41-7073-502 is a SmartX Damper Actuator designed for precise control. This electric actuator operates with a proportional control signal ranging from two to ten VDC. With a power input voltage of twenty-two to thirty VDC and twenty-four VAC/VDC, it ensures reliable performance in various environments.

• Type: Electric actuator with spring return
• Torque: 60 lb-in
• Protection: NEMA 1 and NEMA 2 ratings

Product Highlights

This actuator is suitable for dampers and globe valves. It provides smooth control and efficient operation, making it ideal for HVAC applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Line: SmartX Actuator

Technical Specifications

• Actuator Type: Electric
• Control Signal Range: 2 to 10 VDC, 4 to 20 mA DC
• Loss of Power Type: Spring Return
• Power Input Voltage: 22 to 30 VDC, 24 VAC/VDC
• Torque: 60 lb-in
• Auxiliary Switch: 2 SPDT
• Protection Rating: NEMA 1, NEMA 2
• Temperature Range for Operation: -30 to 60 °C
• Current Consumption: 170 mA
• Power Consumption: 5.8 VA AC, 4.6 W
• Relative Humidity: 5% to 95% non-condensing
