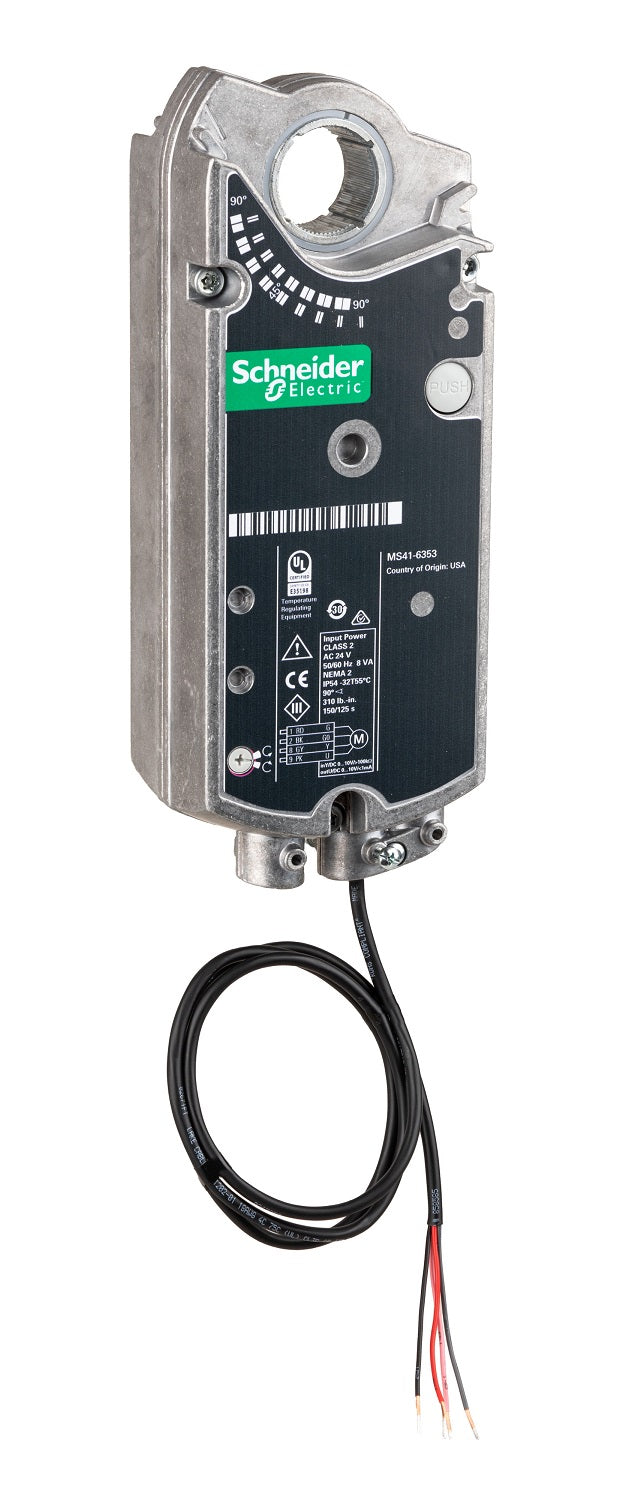

Schneider Electric MS41-6353 SmartX Damper Actuator 24V AC 310 lb-in MPN MS41-6353

Product Description

The Schneider Electric MS41-6353 is a SmartX damper actuator designed for precise control in HVAC systems. This model operates on 24V AC power and has a torque rating of 310 lb-in. It features a non-spring return mechanism and uses a proportional control signal ranging from 0 to 10 VDC.

• Electric actuator with rotary motion
• Compatible with dampers for HVAC applications
• NEMA 2 protection rating for reliability

Product Highlights

This actuator is ideal for use in environments that require precise damper control. It incorporates a brushless DC motor for efficient operation.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Torque: 310 lb-in
• Control Signal Range: 0 to 10 VDC
• Power Input Voltage: 24 VAC
• Protection Rating: NEMA 2
• Ambient Air Temperature for Operation: -32 to 55 °C
• Relative Humidity: 5-95 % non-condensing
• Motor Type: Brushless DC motor
• Hold-In Power Consumption: 8 VA
