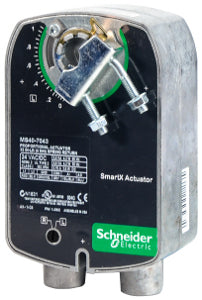

Schneider Electric MS40-7043-MP5 Electric Actuator 6-9 VDC SPDT

Product Description

The Schneider Electric MS40-7043-MP5 is an electric actuator designed for various applications. It features proportional control signals ranging from six to nine VDC. This actuator operates at a power input voltage of twenty-two to thirty VDC or twenty-four VAC/VDC. It provides a torque of thirty-five in-lb making it useful for dampers and globe valves.

• Actuator Type: Electric
• Control Signal Range: 6 to 9 VDC
• Maximum Torque: 35 in-lb

Product Highlights

This actuator includes a spring return type for loss of power scenarios and supports manual override with a five thirty-second allen wrench. It also has an auxiliary switch of one SPDT and operates in a temperature range from negative thirty to sixty degrees Celsius.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Line: SmartX Actuator

Technical Specifications

• Power Input Voltage: 22 to 30 VDC, 24 VAC/VDC
• Protection Rating: NEMA 2
• Ambient Air Temperature For Operation: -30 to 60 °C
• Ambient Air Temperature For Storage: -40 to 71 °C
• Relative Humidity: 5 to 95 % non-condensing
• Mechanical Movement: Rotary
• Actuator Rotation: 95 °
• Material: Die cast aluminium housing
