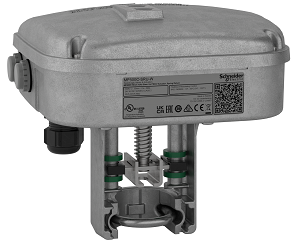

Schneider Electric MP500C-SRU-W Spacelogic Pressure Independent Valve Actuator 24V AC/DC

Product Description

The Schneider Electric MP500C-SRU-W is a pressure independent valve actuator designed for effective control in HVAC and piping systems. This electric actuator operates on 24V AC or DC power and provides a force of five hundred Newtons. It is suitable for applications involving dampers and electronic pressure independent characterized control valves.

• Power Input: 24 V AC/DC
• Protection Rating: IP65
• Control Signal: Proportional and Floating

Product Highlights

This actuator features a spring return mechanism for reliable operation. It has selectable input signal travel times and is compatible with various valve types. Its robust design ensures functionality in various environments.

Product Information

Standard Information

• Product Line: Schneider Electric
• Product Series: MP500C-SR

Technical Specifications

• Actuator Type: Electric
• Control Signal Range: 0 to 10 VDC, 4 to 20 mA DC
• Loss of Power Type: Spring Return
• Mechanical Movement: Linear
• Auxiliary Switch: Available as accessory
• Operating Temperature: -10 to 50 °C
• Relative Humidity: 0-90% RH, non-condensing
• Stroke Running Time: 30 s
