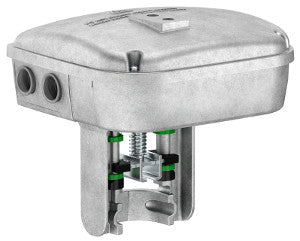

Schneider Electric MP500C-SRU SpaceLogic MP500C-SR Actuator for PIBCV Valves 24 Vac/dc

Product Description

The Schneider Electric MP500C-SRU is an actuator designed for pressure independent control valves. It operates with a voltage input of twenty-four volts alternating current or direct current and is suitable for multi-signal control. The actuator features a spring return mechanism, allowing it to automatically return to the open valve position when power is lost. This product is ideal for applications that require precise control and reliability.

• Actuator force capability up to five hundred newtons
• IP54 rated for dust and moisture protection
• Compatible with various pressure independent control valves

Product Highlights

The MP500C-SRU actuator ensures accurate valve control with its proportional and floating control signals, which range from zero to ten volts direct current or four to twenty milliamps direct current.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Line: SpaceLogic Actuator

Technical Specifications

• MPN: MP500C-SRU
• Power Input Voltage: 24 Vac/dc
• Control Signal Type: Proportional, Floating
• Protection Rating: IP54
• Mechanical Movement: Linear
• Actuator Force: 500 N
• Stroke Running Time: 30 s
• Operating Temperature: -10 to 50 °C
• Relative Humidity: 0-90 % RH, non-condensing
