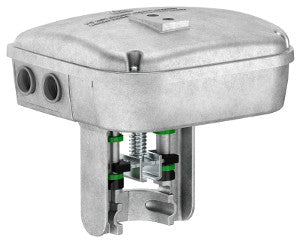

Schneider Electric MP500C-SRD Actuator 24V AC/DC Multi-Signal Control PIBCV Valves

Product Description

The Schneider Electric MP500C-SRD actuator is designed for use with pressure independent control valves. This electric actuator operates on a voltage of twenty-four volts AC or DC, featuring multi-signal control for precise valve operations. The spring-return mechanism ensures the valve closes when power is lost, enhancing reliability in critical applications.

• Force capability of five hundred Newtons.
• IP54 rating for protection against dust and water.
• Control signal range of zero to ten VDC and four to twenty mAdc.

Product Highlights

This actuator is suitable for automatic reset functions and comes with an optional auxiliary switch for added versatility. Its compact design and straightforward terminal block connections facilitate easy installation and maintenance.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Electric actuator
• Power Input Voltage: 24 Vac/dc
• Control Signal: Proportional, Floating
• Loss of Power Type: Spring Return
• Force: 500 N
• Protection Rating: IP54
• Stroke Running Time: 30 s
• Operating Temperature: -10 to 50 °C
