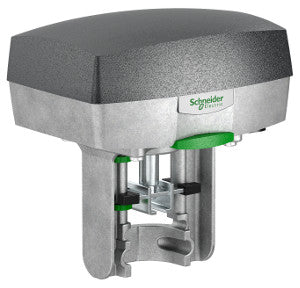

Schneider Electric MP500C Actuator for PIBCV Valves 24 Vac/Vdc 500N

Product Description

Schneider Electric MP500C is an actuator designed for pressure independent control valves. It operates on 24 Vac/dc and provides a force of five hundred Newtons. This actuator features multi-signal control with a linear movement.

• Actuator Type: Electric
• Power Input Voltage: 24 Vac/dc
• Protection Rating: IP54

Product Highlights

This actuator supports proportional control signals and is suitable for various HVAC applications.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Product Line: SpaceLogic Actuator

Technical Specifications

• Control Signal Range: 0 to 10 VDC, 4 to 20 mAdc
• Force: 500 N
• Mechanical Movement: Linear
• Ambient Air Temperature For Operation: -10 to 50 °C
• Relative Humidity: 0-90 % RH, non-condensing
• Power Consumption: 15 VA AC
• Weight: 1.87 kg
• Dimensions: 18.5 cm (L) x 13.5 cm (W) x 18.0 cm (H)
