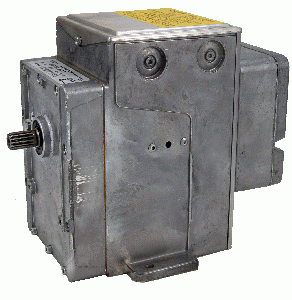

Schneider Electric MP-461 Actuator 120 VAC 50 in-lb SPDT

Product Description

The Schneider Electric MP-461 is an electric actuator designed for efficient control in various applications. Operating on a power input of one hundred twenty volts AC, this actuator allows for proportional control signals ranging from two to twelve volts DC. The spring return mechanism ensures reliability during power loss. This actuator is suitable for dampers and globe valves.

• Electric actuator type
• Proportional control signal
• Torque rating of fifty in-lb

Product Highlights

Ideal for applications requiring precise control with a user-friendly interface.

Product Information

Standard Information

• Brand: Schneider Electric
• Origin: US

Technical Specifications

• MPN: MP-461
• Power Input Voltage: 120 VAC
• Control Signal Range: 2 to 12 VDC
• Torque: 50 in-lb
• Switch Function: 1 SPDT
• Mechanical Movement: Rotary
• Protection Rating: NEMA 1
• Operating Temperature: -40 to 57.7 °C
• Weight: 4.536 kg
• Height: 24.63 cm
• Width: 26.67 cm
• Length: 33.01 cm
• Ambient Storage Temperature: -40 to 71 °C
• Relative Humidity: 5 to 95 % non-condensing
• Actuator Rotation: 180 °
