Schneider Electric MP-387 Direct Coupled Actuator 220 in-lb.

Product Description

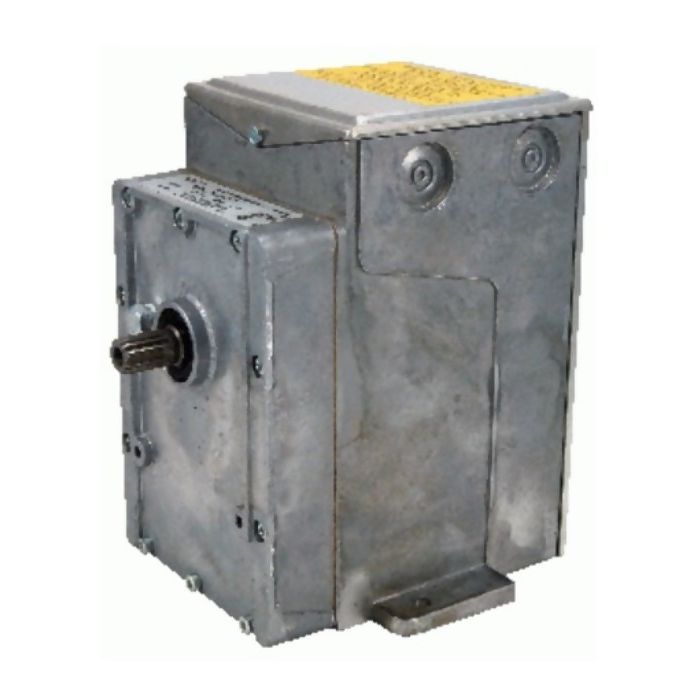

The Schneider Electric MP-387 is a direct coupled actuator with a torque rating of two hundred twenty inch-pounds. It operates with a non-spring return mechanism, making it suitable for HVAC control applications. This actuator connects to a power supply of twenty four volts alternating current and provides modulating control for two to twelve volts direct current with one hundred ohm feedback.

• Integrated feedback potentiometer for precise control
• Die cast housing designed for durability
• Oil-immersed motor and gear train for improved performance

Product Highlights

The MP-387 actuator is designed for robust HVAC systems, ensuring reliable operation within harsh conditions.

Product Information

Standard Information

• Brand: Schneider Electric
• Part Number: MP-387

Technical Specifications

• Housing: NEMA 4
• Auxiliary Switch: 1 x SPDT
• Power Consumption: 25 VAC, 2.2 Amps
• Operating Conditions: -40 F to 136 F (-40 to 58 C)
• Electrical Connections: Terminal Block
