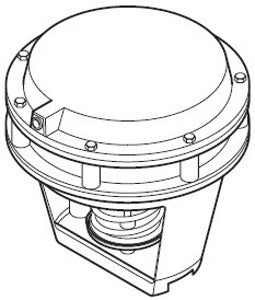

Schneider Electric MK-6911 Actuator Pneumatic 2Pos/Prop 5-10 PSIG

Product Description

Schneider Electric MK-6911 is a pneumatic actuator designed for precise control of globe valves. It operates on a two-position (on/off) and proportional control signal, with a spring return feature that enhances reliability. This actuator is suitable for various industrial applications requiring accurate movement and control.

• Pneumatic actuator for globe valves
• Control signal: 2-position and proportional
• Spring return feature

Product Highlights

The MK-6911 offers a control spring range between five to ten PSIG, accommodating diverse system requirements while ensuring optimal performance.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Actuator Type: Pneumatic
• Control Spring Range: 5 to 10 PSIG
• Leads and Connections: 1/8 inch Air NPT
• Mechanical Movement: Linear
• Protection Rating: NEMA 1
• Ambient Air Temperature for Operation: -28.8 to 104.4 °C
• Ambient Air Temperature for Storage: -40 to 104.4 °C
• Body Material: Die cast aluminum
• Diaphragm Effective Area: 50 in²
