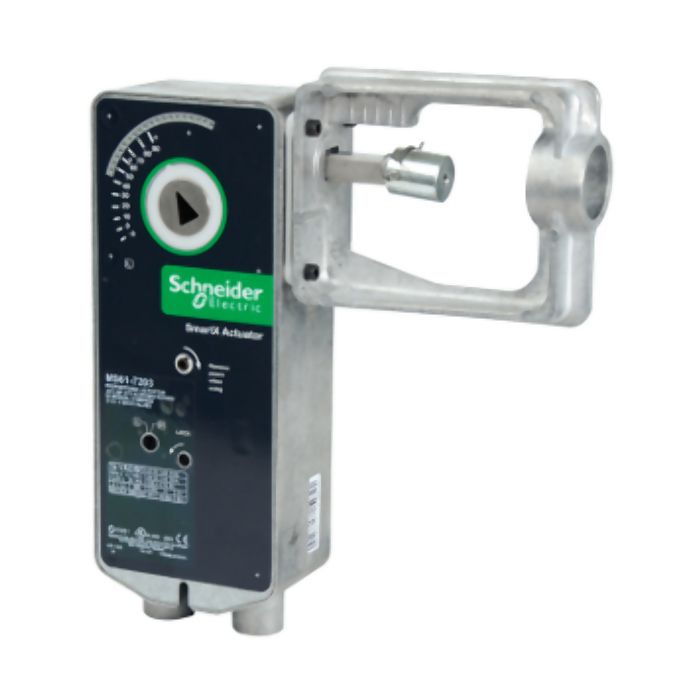

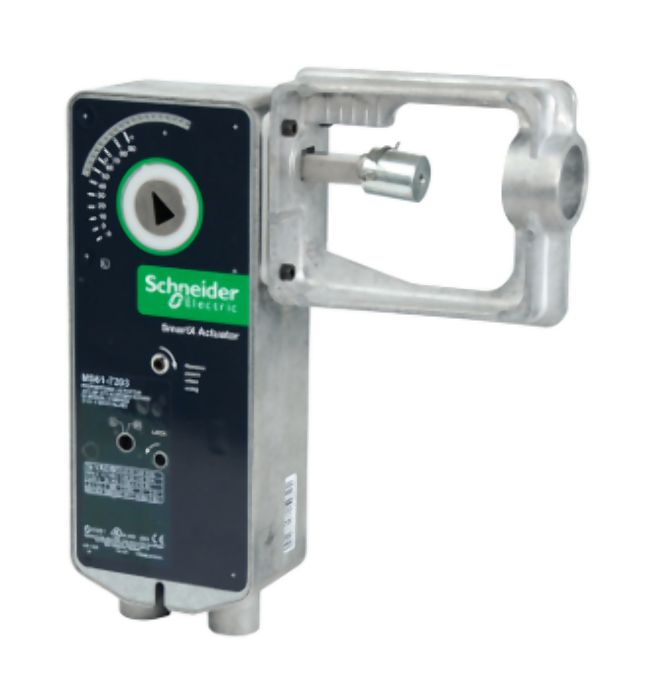

Schneider Electric MF61-7203 Direct Coupled Actuator 120 ft.-lb.

Product Description

The Schneider Electric MF61-7203 is a direct coupled actuator designed for efficient control in HVAC systems. It operates at 120 foot-pounds of torque and requires 24 VAC or DC power with a consumption of nine point eight volt-amperes.

• Two position models managed by SPST controller
• Proportional models supported by 2-10 VDC or 4-20 mA with an optional resistor
• Five-year warranty

Product Highlights

This actuator features automatic control signal input span adjustment for matching valve travel and compact design for flexible application.

Product Information

Standard Information

• Brand: Schneider Electric
• Part Number: MF61-7203

Technical Specifications

• Power Consumption: 24 VAC, 9.8 VA
• Operating Conditions: 0 F To 140 F (-18 To 60 C)
• Electrical Connections: 3 ft. appliance cables, 1/2 in. conduit connectors
• Housing: NEMA 2, IP54
• Force: 220 lb. (979 newton)
• Nominal Linear Stroke: 1/2 in. (13 mm) or 1 in. (25 mm)
