Schneider Electric METSEPM89M2600 SQD METSEPM89M2600 PowerLogic PM800 6 Inputs + 2 Relays Outputs

Product Description

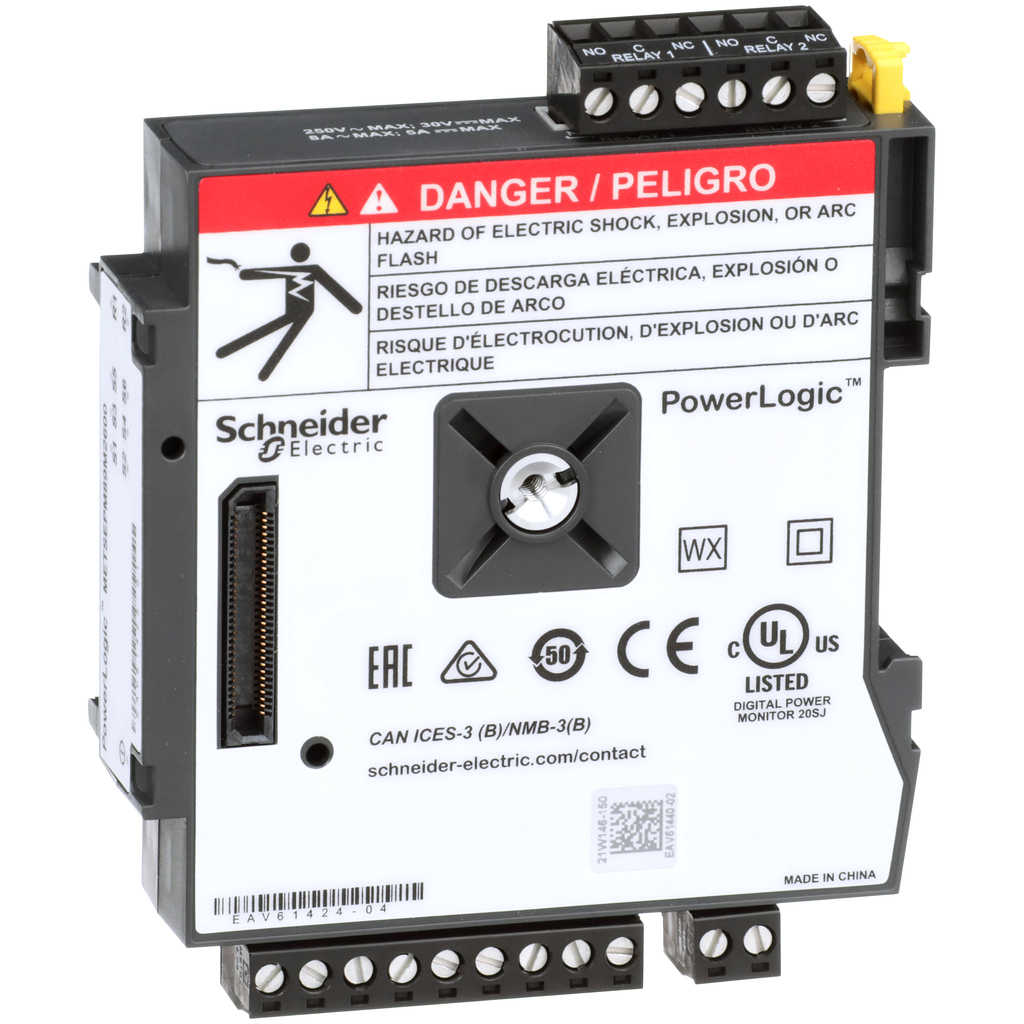

The Schneider Electric METSEPM89M2600 is an I/O module designed for PowerLogic PM8000, ION7400, and ION9000 devices. It expands digital input and relay output capabilities significantly. This module includes six digital inputs compatible with 30VAC or 60VDC, which can be powered by the built-in wetting source or an external power source. It features four relay outputs capable of controlling loads up to eight amperes at 240VAC, facilitating various automation tasks.

• Compatible with PowerLogic PM8000, ION7400, and ION9000 devices
• Supports six digital inputs and four relay outputs
• Compact dimensions for easy installation alongside existing equipment

Product Highlights

This expansion module enables efficient monitoring and control within automated environments.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: METSEPM89M2600
• Type: I/O module
• Width: 0.87 inches
• Height: 3.56 inches
• Depth: 3.56 inches
• Weight: 4.94 ounces
• Number of Outputs: 2 FORM C relay outputs
• Operating Temperature Range: -40 to 85 degrees C
