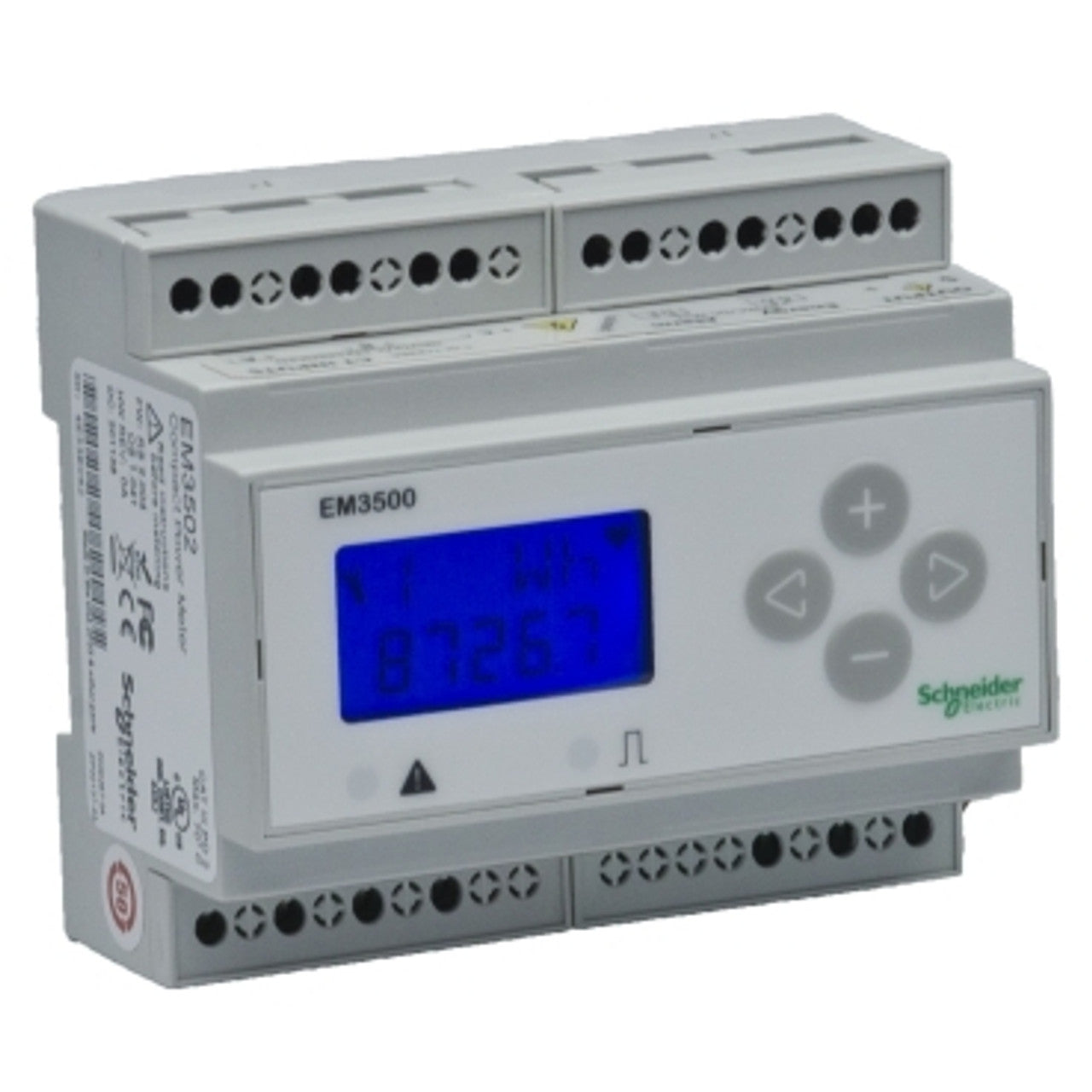

Schneider Electric METSEEM3560A PowerLogic EM3500 Series Energy Meter

Product Description

The Schneider Electric METSEEM3560A is a three-phase energy meter designed for cost allocation and sub-metering. This device is from the PowerLogic EM3500 series and mounts easily on a DIN rail. It can handle Rogowski coil CTs and has an integrated integrator and power supply. The meter supports current inputs ranging from twenty amperes to five thousand amperes. It also features data logging capabilities with BACnet communication and alarms.

• Three-phase energy meter suitable for DIN rail mounting.
• Compatible with Rogowski coil current transformers.
• Offers data logging and native BACnet communication.

Product Highlights

The METSEEM3560A is suitable for various applications, including energy monitoring and sub-billing. It operates within a voltage range of ninety to three hundred volts AC, making it versatile for different setups.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: METSEEM3560A

Technical Specifications

• Series: PowerLogic EM3500
• Poles Description: 3P + N
• Metering Type: Peak demand power, Current I1, I2, I3
• Accuracy Class: Class 0.5S
• Input Current: 20 to 5000 A
• Rated Voltage: 90 to 347 V
• Network Frequency: 50 Hz, 60 Hz
• Display Type: Backlit LCD
• Operating Temperature: -30 to 70 °C
• Width: 4.21 inches
• Height: 3.58 inches
• Depth: 2.32 inches
