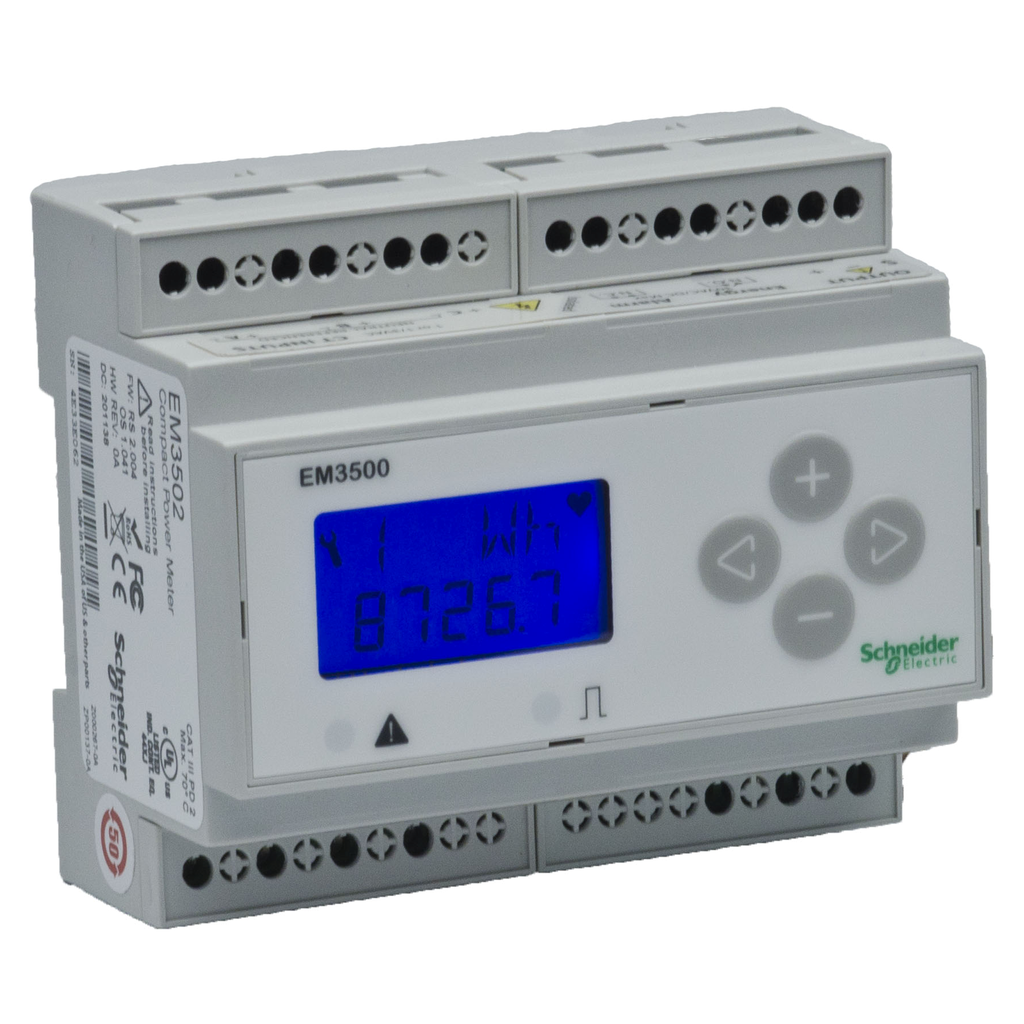

Schneider Electric METSEEM3555A PowerLogic EM3500 Energy Meter

Product Description

The Schneider Electric METSEEM3555A is a high-precision energy meter designed for three-phase applications. This model is suitable for DIN rail mounting and is best utilized for accurate cost allocation and sub-metering. It operates exclusively with Rogowski coil CTs, integrating both the CT power supply and integrator within the meter itself. It is intended for environments that do not have high harmonic distortions.

• Current input capabilities range from twenty amps to five thousand amps.
• Complies with ANSI C12.20 0.5% accuracy standards and IEC 62053-22 class 0.5S.
• Features include data logging, Modbus, pulse output, and phase alarms for various applications.

Product Highlights

This energy meter also features bi-directional monitoring ideal for renewable energy applications, functioning on a 230V AC network with a voltage supply range of ninety to three hundred volts at fifty or sixty hertz.

Product Information

Standard Information

• Brand: Schneider Electric
• Model: EM3500

Technical Specifications

• Type: Energy meter
• Output: 1 alarm output, 1 pulse
• Voltage: 90-347 volts
• Width: 107 mm
• Height: 91 mm
• Depth: 59 mm
• Weight: 280 g
• Operating Temperature: -30 to 70 degrees C
• Storage Temperature: -40 to 85 degrees C
