Schneider Electric METSEEM3555 SQD METSEEM3555 PowerLogic EM3500 D

Product Description

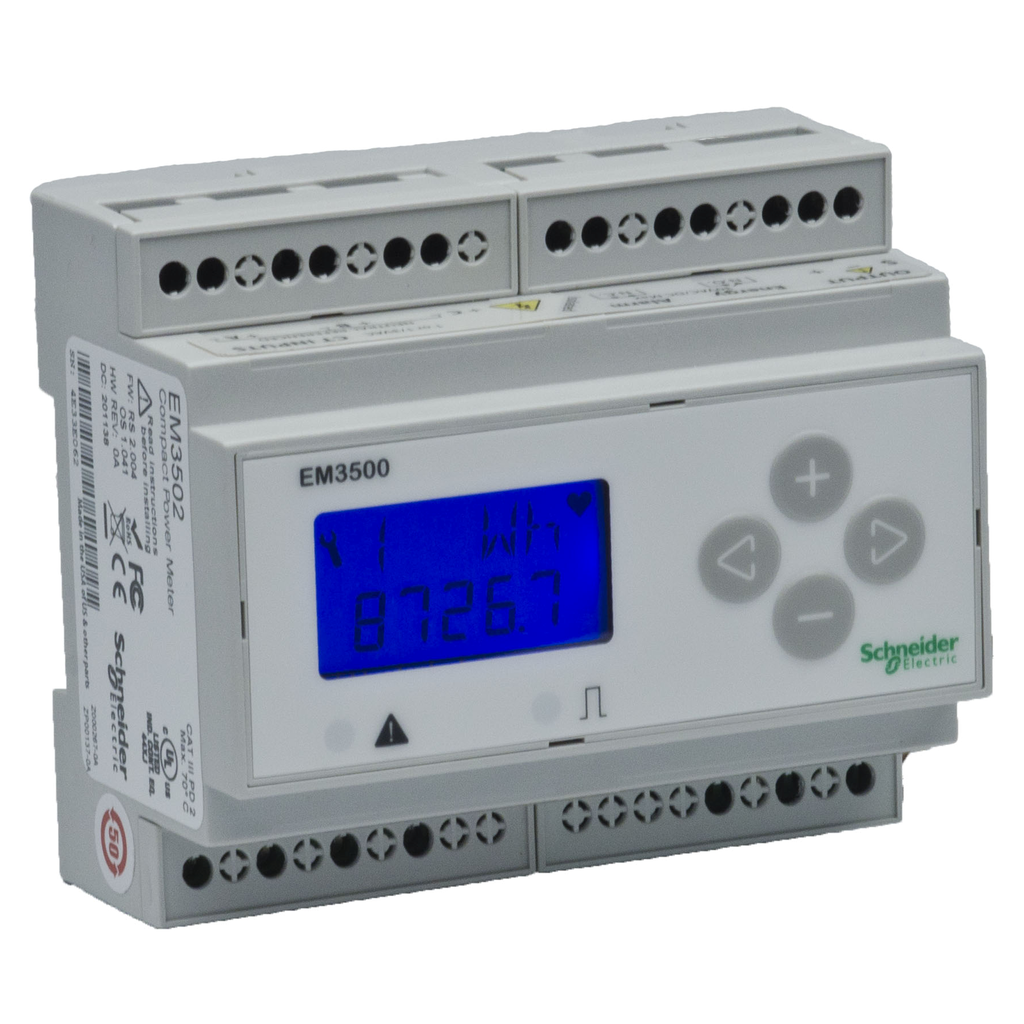

Schneider Electric METSEEM3555 is a three-phase DIN rail-mounted energy meter. It is designed for accurate cost allocation and sub-metering. The model supports Low Voltage Current Transducers with 1/3 Volt or 1 Volt output. This device can handle a current input range from five Amperes to thirty-two thousand Amperes based on the LVCT configuration.

• ANSI C12.20 0.2% accuracy.
• IEC 62053-22 class 0.2S compliance.
• Features data logging for power failure protection.

Product Highlights

The METSEEM3555 model includes features for Modbus, pulse output, and phase alarms. It also supports bi-directional monitoring for renewable energy applications. This meter is suitable for a 230 Volt AC network with an input voltage range from ninety to three hundred Volts at either fifty or sixty Hertz.

Product Information

Standard Information

• Manufacturer: Square-D / Schneider
• Country of Origin: United States

Technical Specifications

• Current Input: 5-32000 Amp
• Voltage Range: 90-300 Volt AC
• Power Rating: 3 Watt
• Dimensions: Width 107 mm, Depth 59 mm, Height 91 mm
• Mounting Type: Clip-on, Screws
• Operating Temperature: -30 to 70 degrees C
• Storage Temperature: -40 to 85 degrees C
• Standards Compliance: UL508, CSA 22.2 No 14-05, IEC 61010-1
