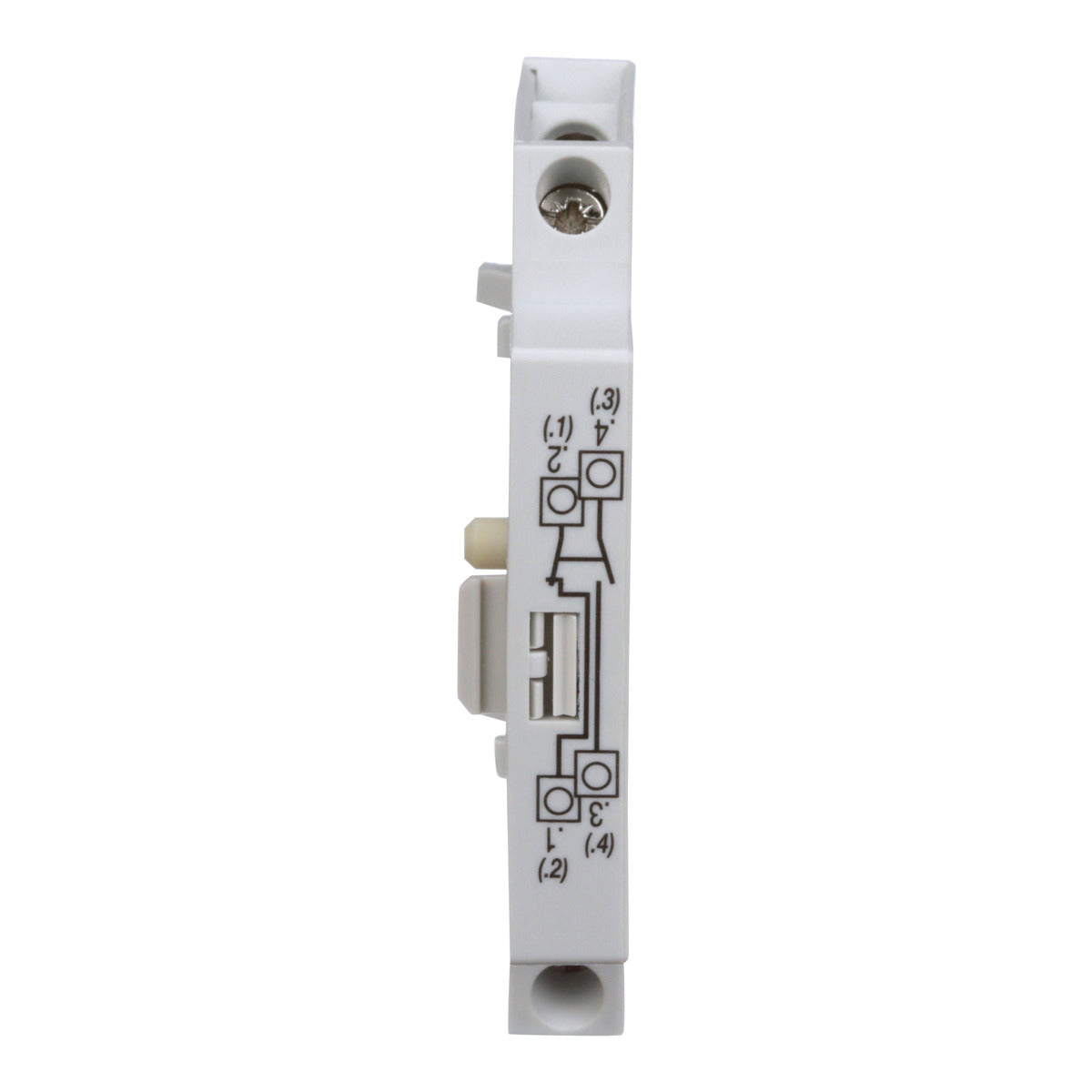

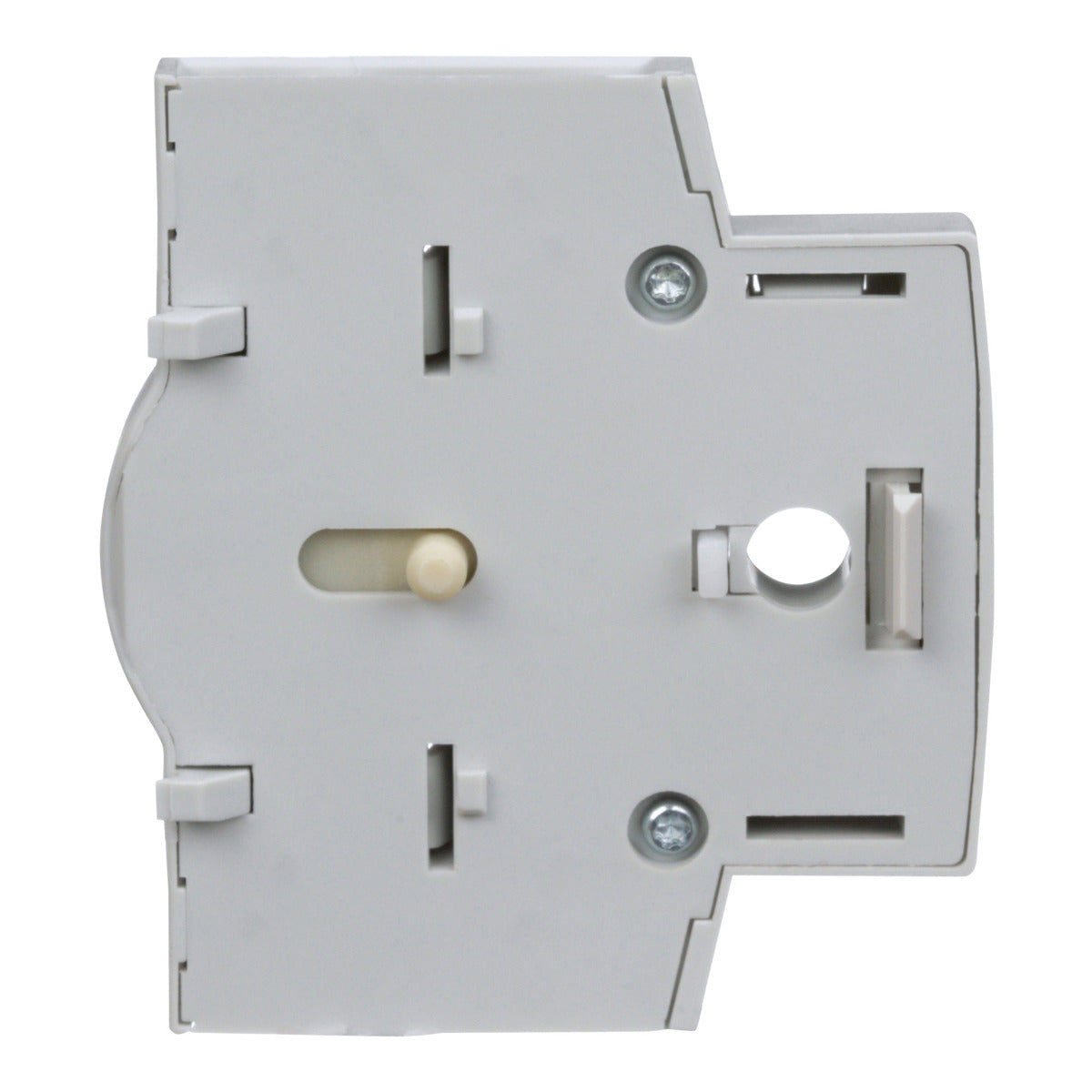

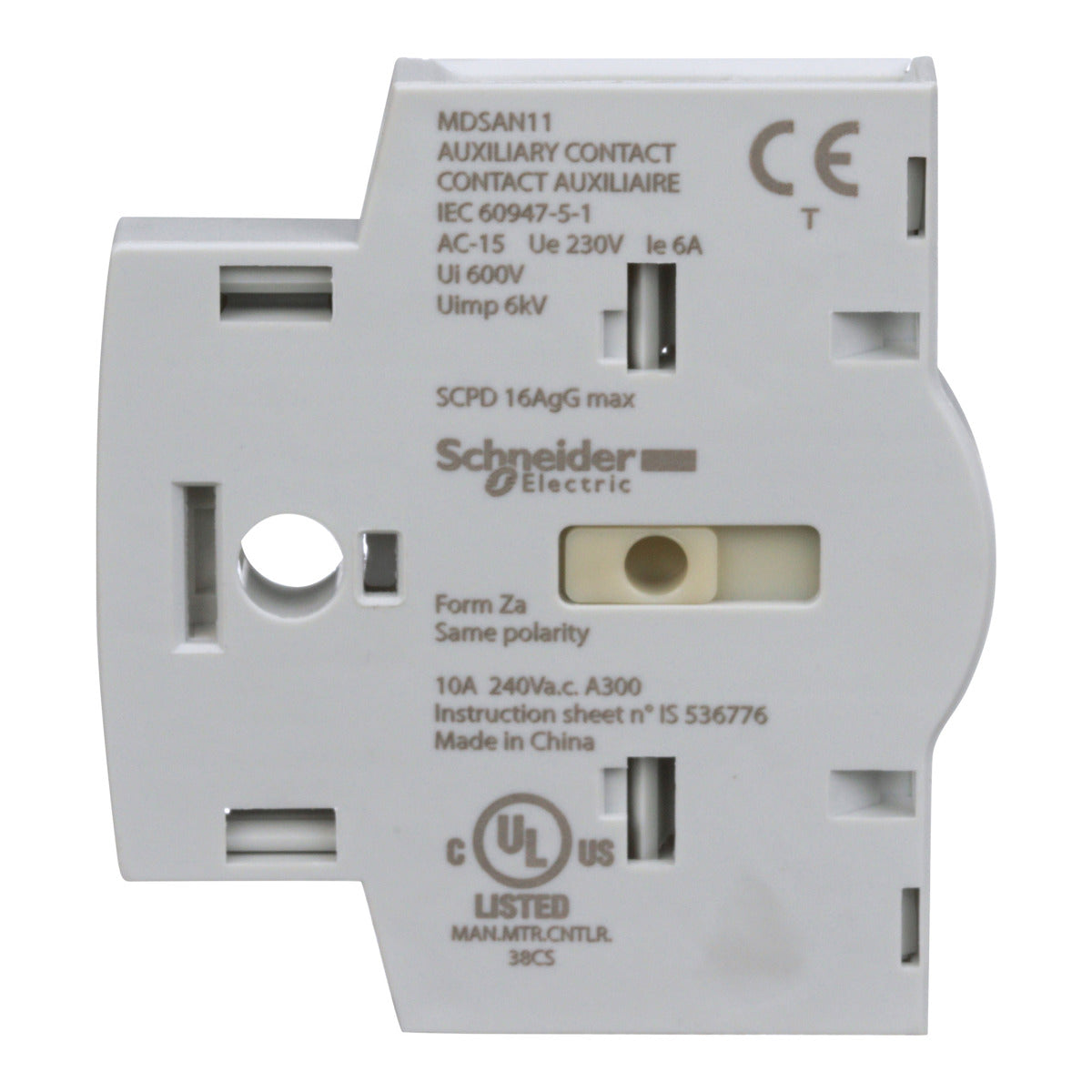

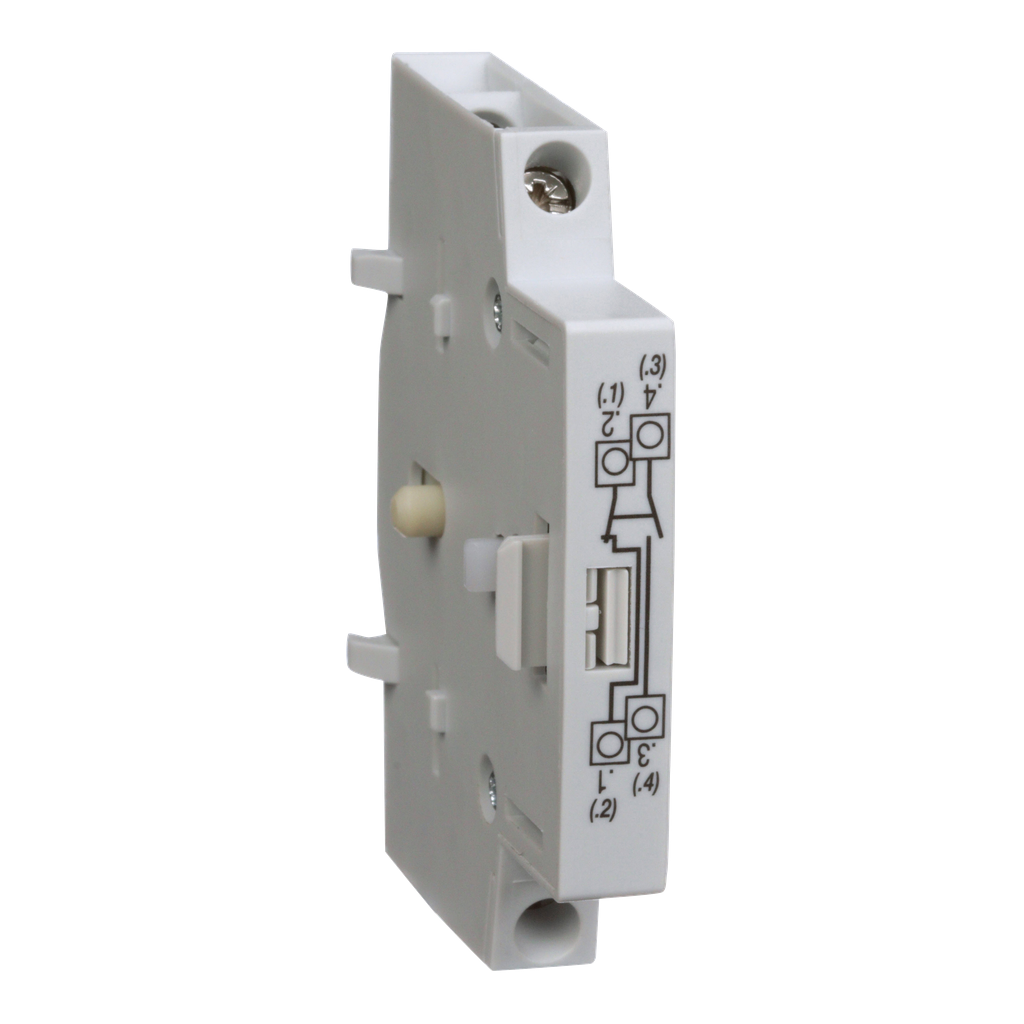

Schneider Electric MDSAN11 Auxiliary Contact Module 1NO 1NC

Product Description

The Schneider Electric MDSAN11 is an auxiliary contact module designed for motor control applications. It features a compact build suitable for various environments, including NEMA ratings 1, 3, 3R, 4, 4X, and 12. This unit incorporates one normally open and one normally closed contact, making it versatile for your control requirements.

• Compact NEMA 4X enclosure for varied applications
• UL listed and CSA certified for safety and reliability
• Compatible with MD series disconnect switches

Product Highlights

Built for efficiency and safety, the MDSAN11 is ideal for use in control and automation settings.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: MDSAN11
• Voltage: 600 VAC
• Actuator: Disconnect Actuated
• Number of Poles: 2 Pole
• Contact Configuration: 1 NO + 1 NC
• Warranty Length: 18 months
• Country of Origin: China
